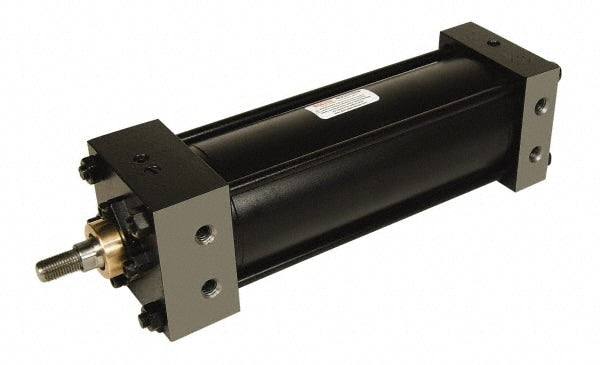

Double Acting Rodless Air Cylinder: 4" Bore, 5" Stroke, 250 psi Max, 1/2 NPTF Port, Side Tapped Mount
Item #: 85490399
Brand: Schrader Bellows
Model #: 1H000060703
Product Specifications
| Type | Double Acting |
| Bore Size (Decimal Inch) | 4.00 |
| Bore Size (Inch) | 4 |
| Rod Diameter (Decimal Inch) | 1.0000 |
| Stroke Length (Inch) | 5 |
| Mounting Style | Side Tapped |
| Port Size | 1/2 |
| Port Type | NPTF |
| Length (Decimal Inch) | 11.750 |
| Material | Steel |
| Seal Material | Nitrile butadiene rubber |
| Maximum Working Pressure (psi) | 250 |
| Rod Thread Size | 3/4-16 |
| Style | Male |
| UNSPSC Code | 27131701 |
| Country of Origin | UNITED STATES |
