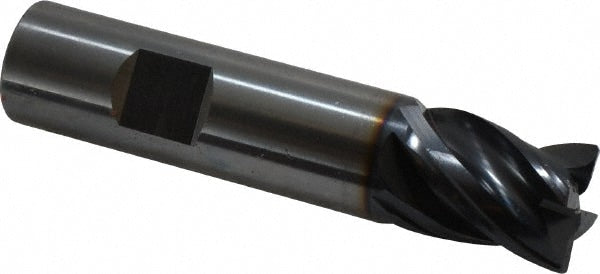

Corner Chamfer End Mill: 3/4" Dia, 7/8" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide
Item #: 53412615
Brand: OSG
Model #: VG436-7500
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 7/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Length Type | Stub |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 0.8750 |
| Reach Length (Inch) | 7/8 |
| Mill Diameter Tolerance | +0.0000 to -0.0015 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Series | VG436 |
| Additional Information | Shouldering; Slotting |
| Coating Classification | PVD |
| Chamfer Length (Decimal Inch) | 0.0200 |
| Helix Style | Medium |
| Manufacturers Catalog Number | VG436-7500 |
