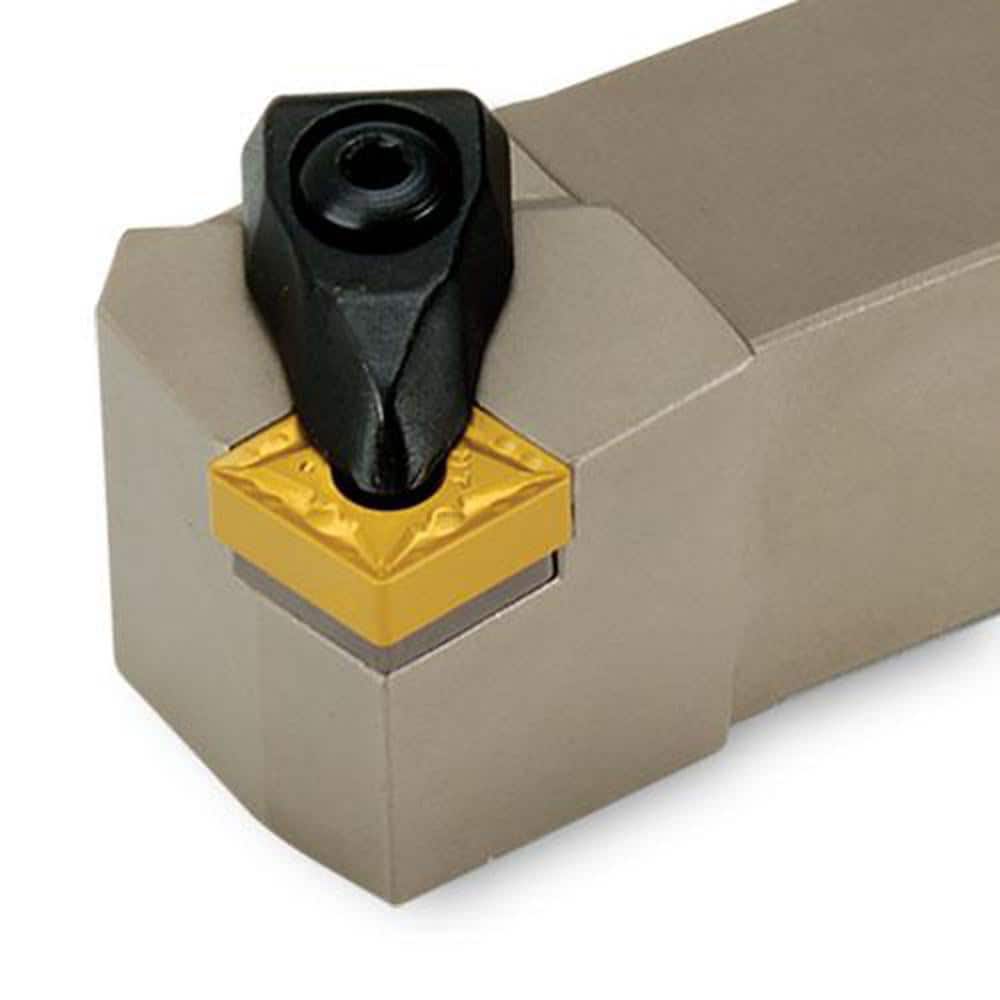

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: CN..43.; Toolholder Style: TCKNR; Rake: Negative; Multi-use Tool: No; Lead Angle: 75.0; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 1.2500; Shank Widt
Item #: 88644786
Brand: Ingersoll Cutting Tools
Model #: 3603848
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CN..43. |
| Toolholder Style | TCKNR |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 75.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Width (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Series | L; TCKNR |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Toolholder Material | Steel |
