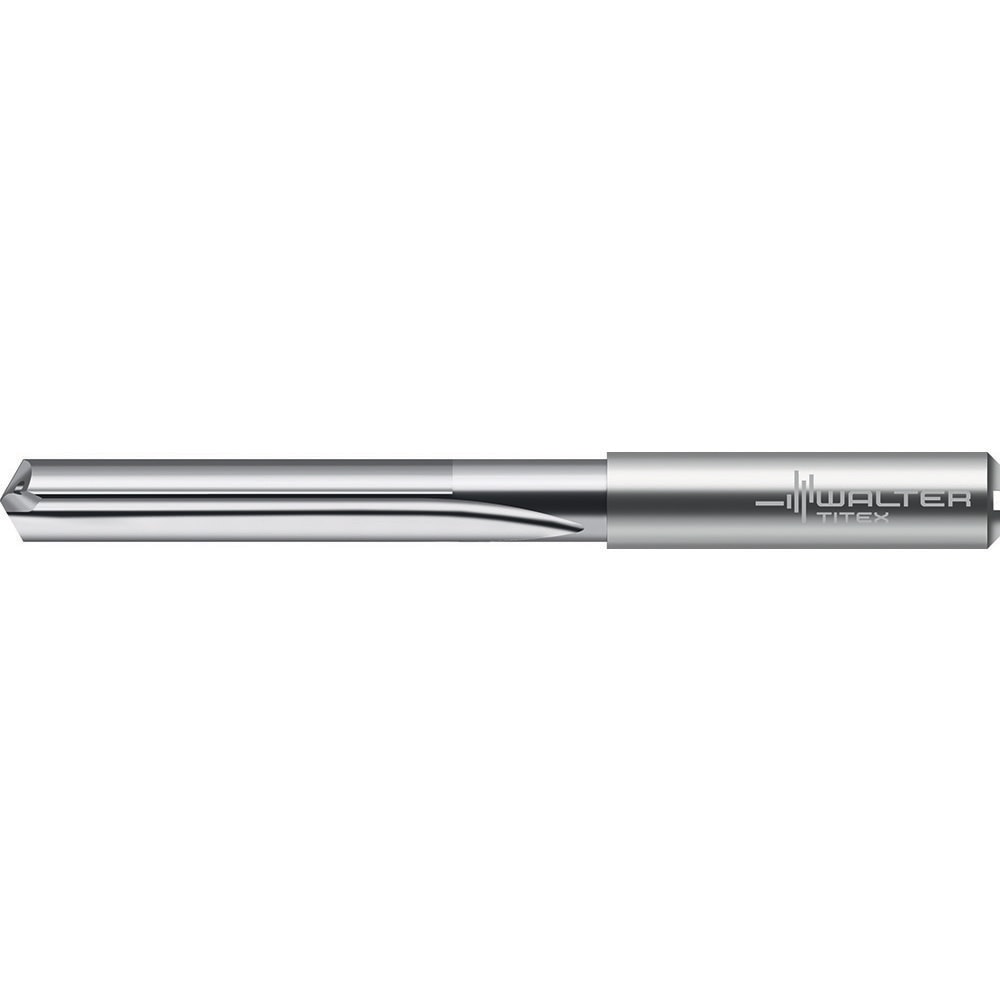

Straight-Flute & Die Drill Bits; Drill Bit Size (mm): 15.00; Tool Material: Solid Carbide; Coating/Finish: Uncoated
Item #: 78330065
Brand: Walter-Titex
Model #: 8098108
Product Specifications
| Drill Bit Size (mm) | 15.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Decimal Inch) | 3.1102 |
| Flute Length (mm) | 79.00 |
| Drill Point Angle | 120 |
| Overall Length (mm) | 133.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.0000 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Material Grade | Uncoated |
| Overall Length (Decimal Inch) | 5.2362 |
| Series | DC165 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | k6 |
| Drill Length Type | Jobber Length |
| Primary Workpiece Material Code | K; N |
| Standards | DIN 6535 HA |
| Maximum Drilling Depth (Decimal Inch) | 3.1102 |
| Maximum Drilling Depth (mm) | 79.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| UNSPSC Code | 23241600 |
| Flute By Diameter Ratio | 5xD |
| Country of Origin | France |
