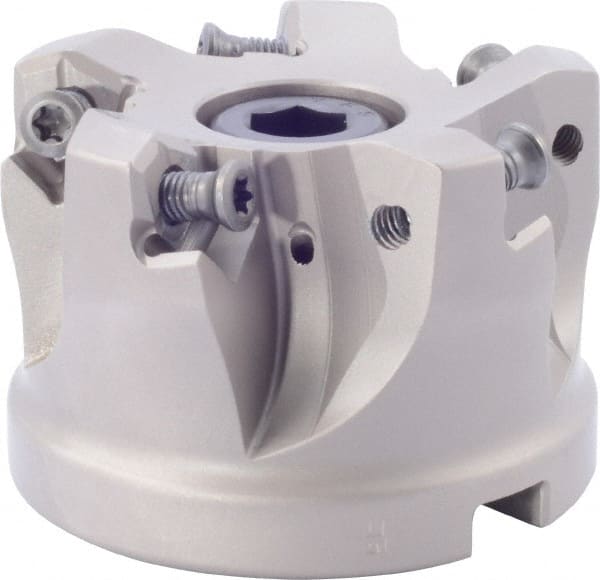

Iscar - 5 Inserts, 1.87" Cutter Diam, 0.08" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 1-3/4" High, FF FWX-08 Toolholder, H600 WXCU 08 Inserts, Series FF FWX
Item #: 88689252
Brand: Iscar
Model #: 3105247
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.8700 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | FF FWX |
| Cutter Style | FF FWX-08 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | H600 WXCU 08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.5000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | FF FWX D2.50-05-1.00-08 |
