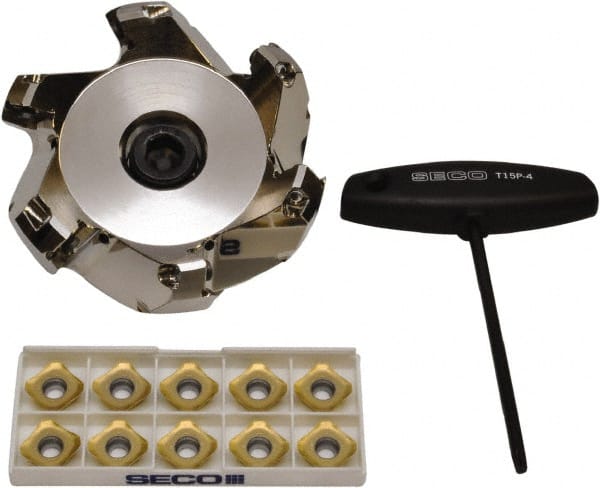

Seco - 3.7" Cut Diam, 1" Arbor Hole, 0.236" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SE.X 43 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.53
Item #: 88689534
Brand: Seco
Model #: 41154
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.7000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9700 |
| Insert Compatibility | SE.X 43 |
| Series | R220.53 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.53 |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
