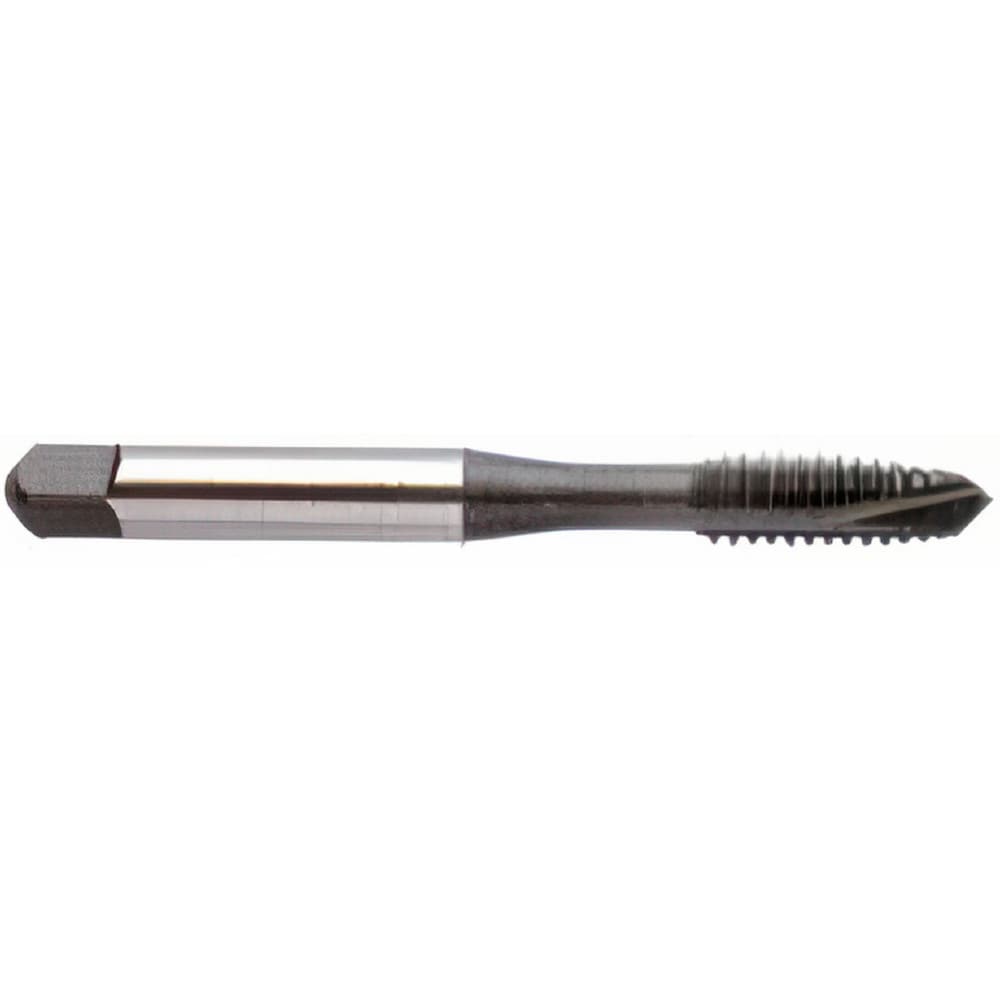

Spiral Point Tap: 1/4-28 UNF, 3 Flutes, Plug Chamfer, 3B Class of Fit, HSS, Hardslick Coated
Item #: 89350136
Brand: YG-1
Model #: J6423
Product Specifications
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | Hardslick |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Alloy Steel; Stainless Steel; Brass; Carbon Steel; Aluminum Alloy; Magnesium; Copper Alloy; Zinc |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 28 |
| Overall Length (Inch) | 2-1/2 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Overall Length (Decimal Inch) | 2.5 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Measurement Type | Fractional Inch |
| Series | J6 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
| Country of Origin | South Korea |
