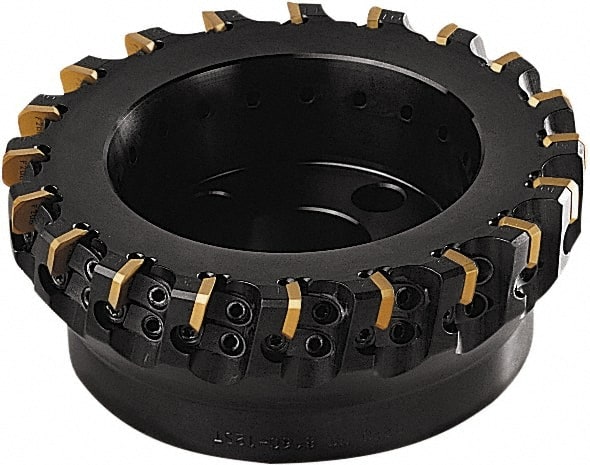

Seco - 160mm Cut Diam, 40mm Arbor Hole, 1mm Max Depth of Cut, 89° Indexable Chamfer & Angle Face Mill - 20 Inserts, SEEX 1203 Insert, Right Hand Cut, 20 Flutes, Series R220.30
Item #: 88968698
Brand: Seco
Model #: 36394
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 89 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SEEX 1203 |
| Series | R220.30 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Number of Flutes | 20 |
| Cutting Rake Angle | 5 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 3800 |
| Cutting Direction | Right Hand |
| Pitch | Super Close |
| Complete Insert Compatibility | SEEX 1203AFTN-M13; SEEX 1203AFTN-MD14 |
