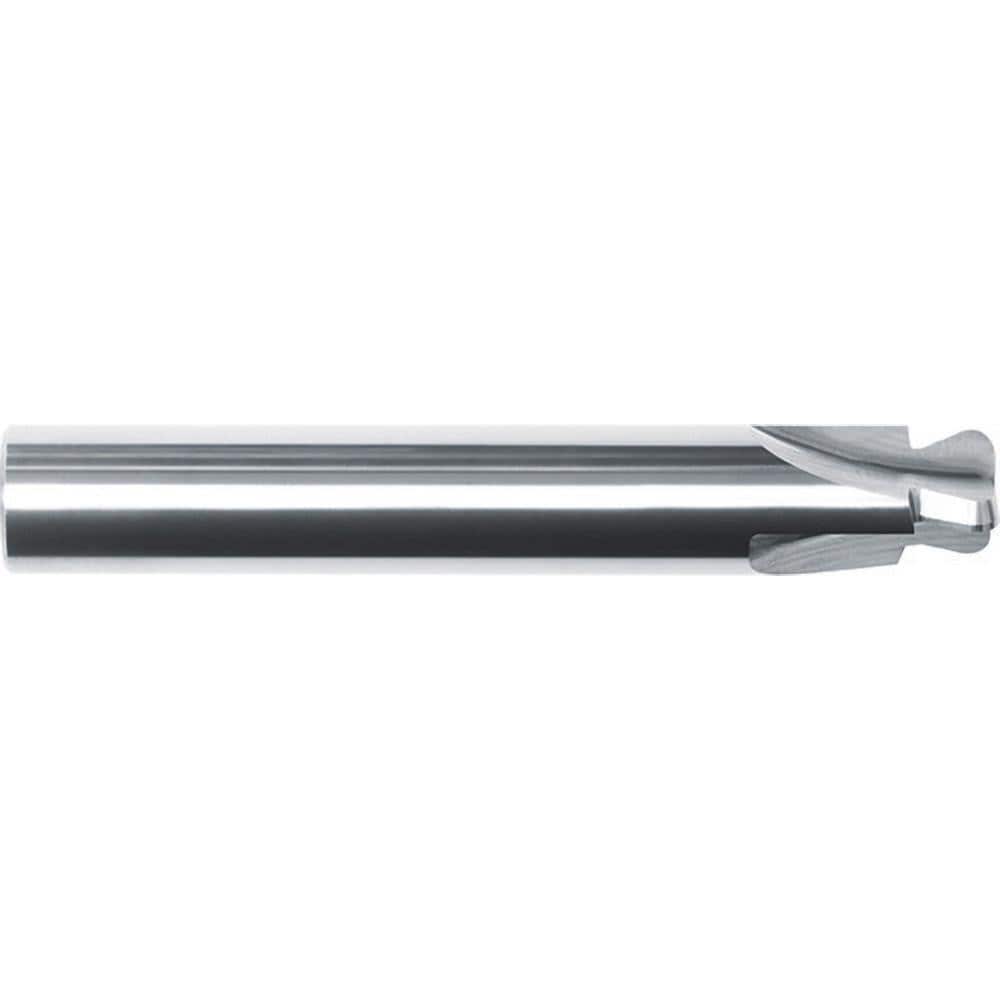

Dovetail Cutters; Included Angle: 48; Cutter Diameter (Decimal Inch): 0.2886; Maximum Cutter Diameter (mm): 7.33; Cutting Width (mm): 4.550; Cutting Width (Decimal Inch): 0.1791
Item #: 78192358
Brand: Internal Tool
Model #: 51-2030
Product Specifications
| Included Angle | 48 |
| Cutter Diameter (Decimal Inch) | 0.2886 |
| Maximum Cutter Diameter (mm) | 7.33 |
| Cutting Width (mm) | 4.550 |
| Cutting Width (Decimal Inch) | 0.1791 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 5/16 |
| Minimum Cutter Diameter (mm) | 4.35 |
| Coating/Finish | Uncoated |
| Shank Length (mm) | 58.950 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 51 |
| Cutter Diameter (mm) | 7.33 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23241632 |
| Country of Origin | UNITED STATES |
