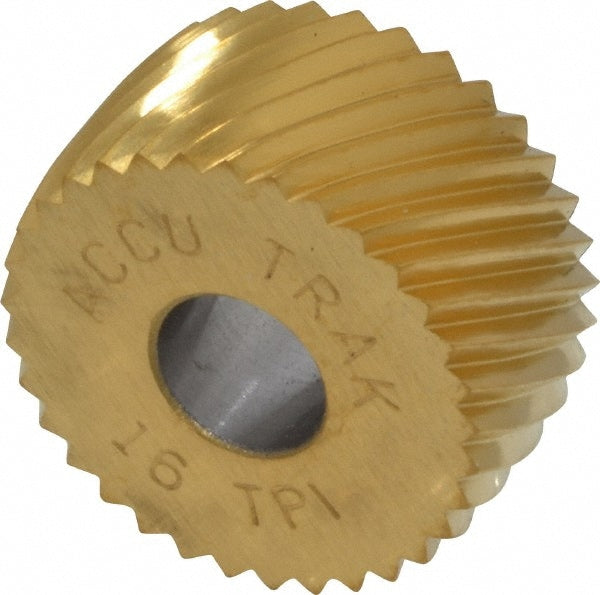

Convex Knurl Wheel: 3/4" Dia, 90 ° Tooth Angle, 16 TPI, Diagonal, Cobalt
Item #: 78660206
Brand: Made in USA
Model #: KPRV216
Product Specifications
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (mm) | 19.05 |
| Knurl Diameter (Decimal Inch) | 0.7500 |
| Knurl Diameter (Inch) | 3/4 |
| Face Width (Inch) | 3/8 |
| Hole Diameter (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Pitch System | Circular |
| Pitch (TPI) | 16 |
| Pitch (mm) | 1.59 |
| Included Tooth Angle | 90 |
| Finish | Titanium Nitride |
| Helix Angle | 30 |
| Knurl Series | KPV |
| UNSPSC Code | 23242118 |
| Country of Origin | UNITED STATES |
