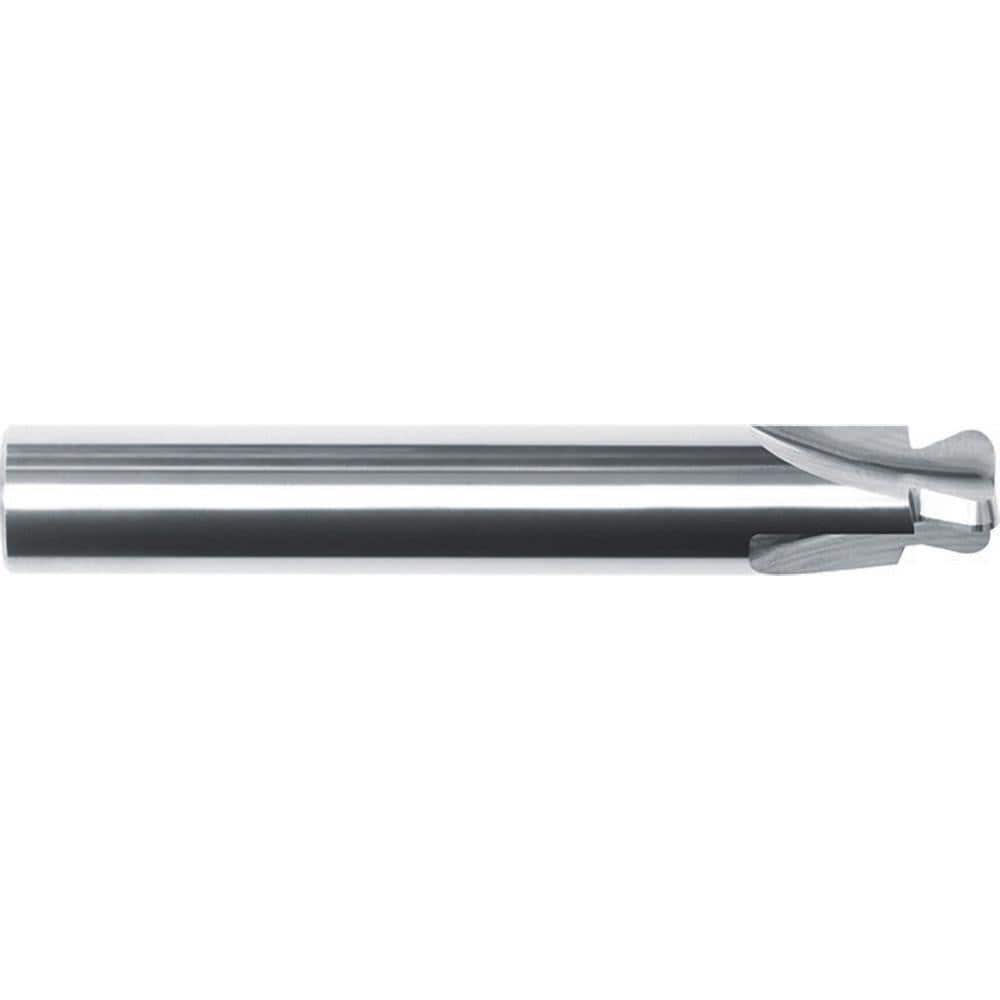

Dovetail Cutters; Included Angle: 48; Cutter Diameter (Decimal Inch): 0.3559; Maximum Cutter Diameter (mm): 9.04; Cutting Width (mm): 5.850; Cutting Width (Decimal Inch): 0.2303
Item #: 78192333
Brand: Internal Tool
Model #: 51-2040
Product Specifications
| Included Angle | 48 |
| Cutter Diameter (Decimal Inch) | 0.3559 |
| Maximum Cutter Diameter (mm) | 9.04 |
| Cutting Width (mm) | 5.850 |
| Cutting Width (Decimal Inch) | 0.2303 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 3/8 |
| Minimum Cutter Diameter (mm) | 5.85 |
| Coating/Finish | Uncoated |
| Shank Length (mm) | 57.650 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 51 |
| Cutter Diameter (mm) | 9.04 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23241632 |
| Country of Origin | UNITED STATES |
