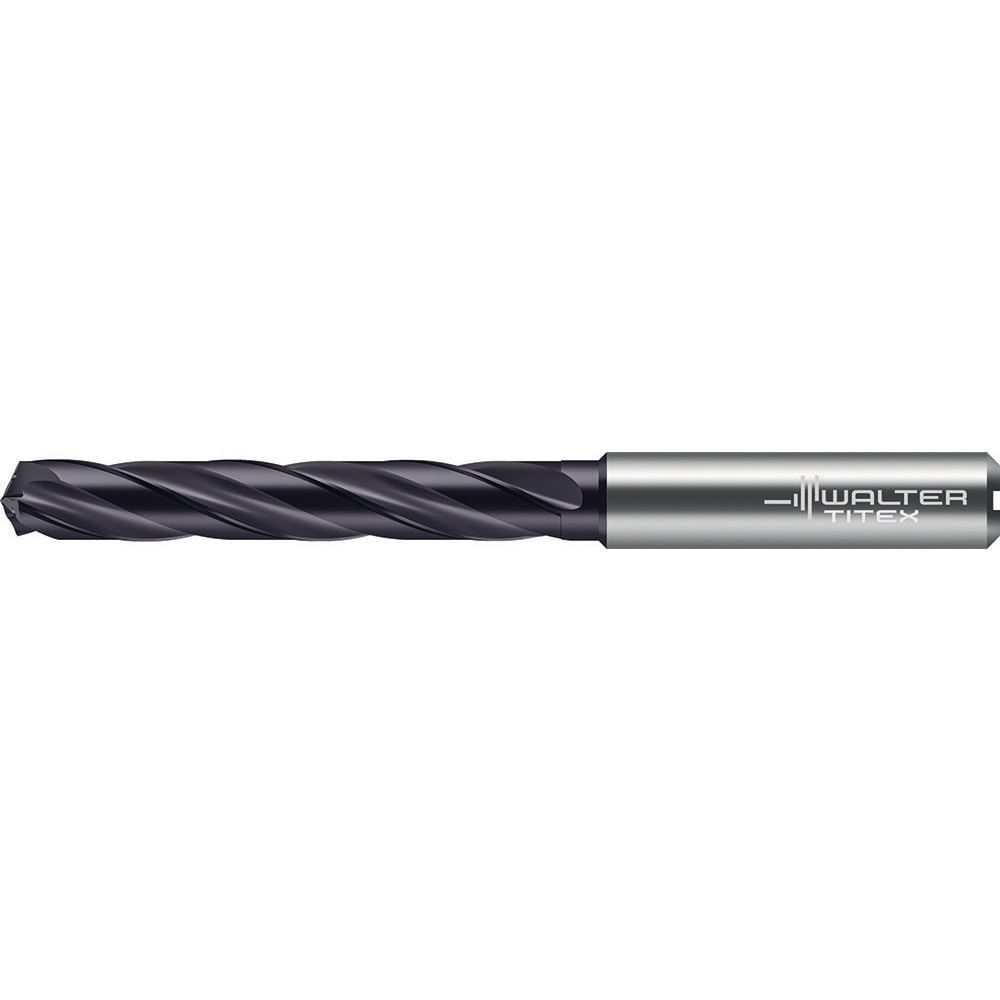

Jobber Length Drill Bits; Drill Bit Size (Inch): 1/2; Drill Bit Size (mm): 12.70; Drill Bit Size (Decimal Inch): 0.5000; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 135; Coating/Finish: Multi-layer
Item #: 78333044
Brand: Walter-Titex
Model #: 8374531
Product Specifications
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (mm) | 12.70 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Spiral Type | Regular |
| Flute Length (mm) | 77.00 |
| Flute Length (Decimal Inch) | 3.0315 |
| Series | DC183 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 14 |
| Maximum Drilling Depth (Decimal Inch) | 2.3622 |
| Maximum Drilling Depth (mm) | 60 |
| Shank Length (mm) | 45 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 2.63 |
| Drill Point Length (Decimal Inch) | 0.1036 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| Drill Bit Grade | WJ30EZ |
| Material Grade | Solid Carbide |
| UNSPSC Code | 23241634 |
| Country of Origin | France |
