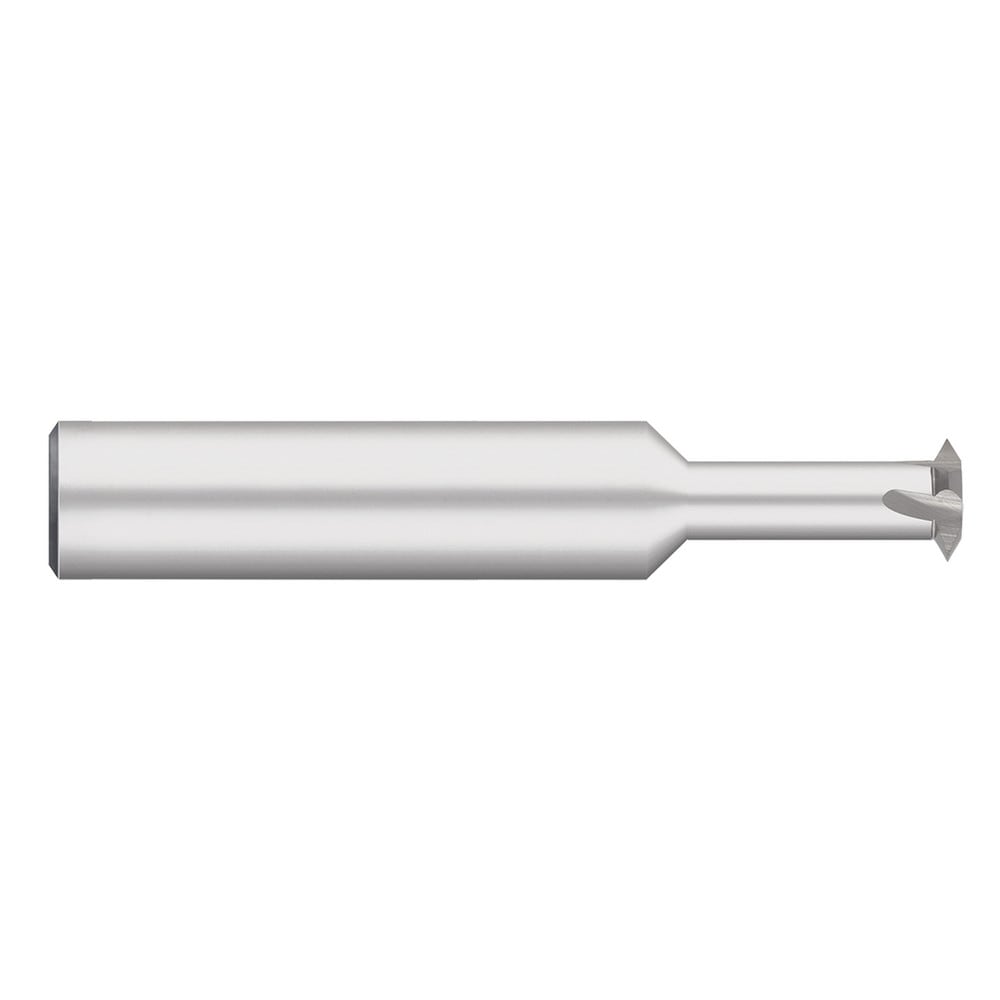

Single Profile Thread Mills; Maximum Threads Per Inch: 72; Minimum Pitch (Decimal Inch): 0.0208; Minimum Pitch (mm): 0.02; Minimum Threads Per Inch: 48; Maximum Pitch (Decimal Inch): 0.0179; Material: Solid Carbide; Thread Type: Internal, External
Item #: 78700036
Brand: Titan USA
Model #: TC82001
Product Specifications
| Maximum Threads Per Inch | 72 |
| Minimum Pitch (Decimal Inch) | 0.0208 |
| Minimum Pitch (mm) | 0.02 |
| Minimum Threads Per Inch | 48 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 3 |
| Thread Depth (Decimal Inch) | 0.1563 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Cutting Diameter (Decimal Inch) | 0.0720 |
| Minimum Nominal Diameter (Inch) | #3 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Neck Diameter (Decimal Inch) | 0.0400 |
| Series | Thread Mills - Single-Form - UN Threads |
| Number Of Flutes | 3 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
