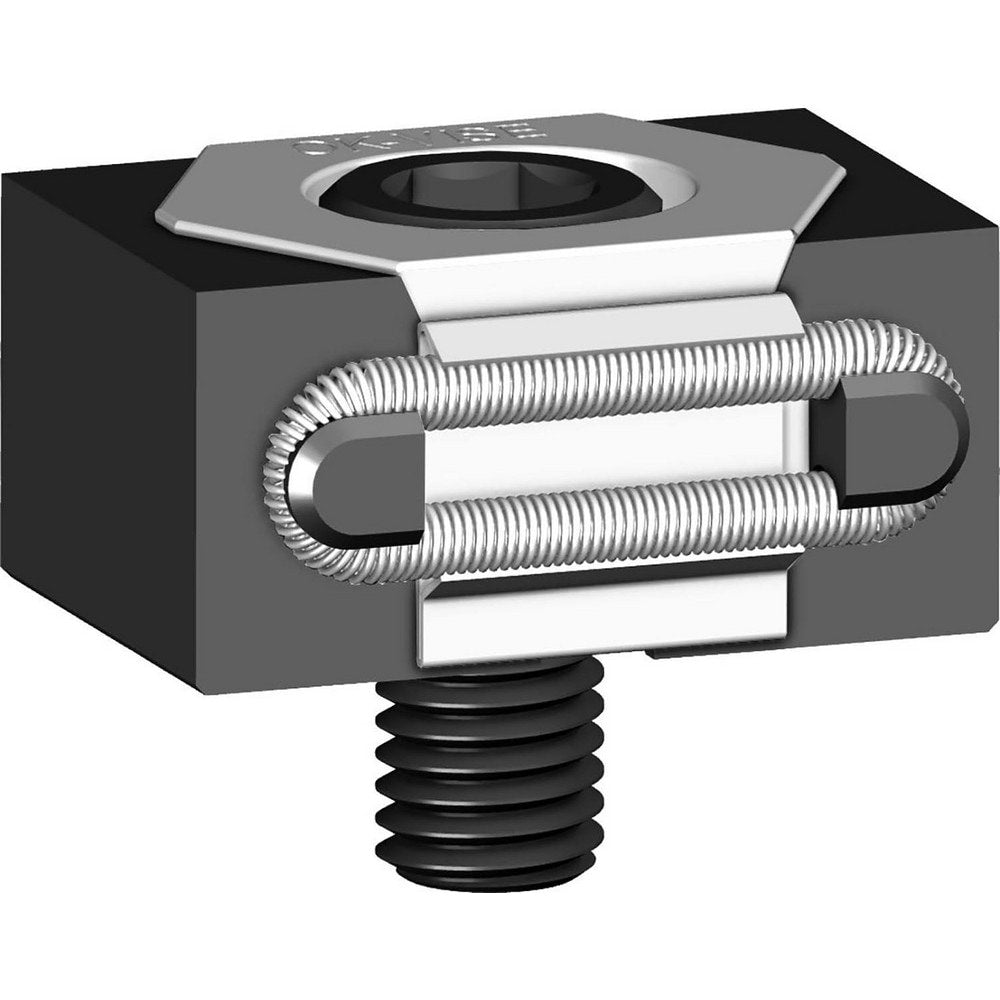

Wedge Clamps; Wedge Clamp Style: Vise; Single/Double Wedge: Single; Machinable: No; Holding Force (Lb.): 14300.00; Torque (Ft/Lb): 106.9500; Torque: 145.000; Overall Width (mm): 41.0000; Overall Width (Decimal Inch - 4 Decimals): 1.6141
Item #: 78703857
Brand: Mitee-Bite
Model #: 47132
Product Specifications
| Wedge Clamp Style | Vise |
| Single/Double Wedge | Single |
| Machinable | No |
| Holding Force (Lb.) | 14300.00 |
| Torque (Ft/Lb) | 106.9500 |
| Torque | 145.000 |
| Overall Width (mm) | 41.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.6141 |
| Jaw Hardness | 48-52 |
| Minimum Jaw Spread (Decimal Inch) | 1.6535 |
| Minimum Jaw Spread (mm) | 42.00 |
| Maximum Jaw Spread (mm) | 49.00 |
| Maximum Jaw Spread (Decimal Inch) | 1.9291 |
| Projection From Base (mm) | 26.00 |
| Hex Key Size (mm) | 10.00 |
| Optimum Jaw Spread (Decimal Inch) | 1.7716 |
| Optimum Jaw Spread (mm) | 45.00 |
| Projection from Base (Decimal Inch) | 1.0236 |
| Overall Depth (Decimal Inch) | 0.8661 |
| Overall Depth (Mm) | 22.00 |
| UNSPSC Code | 27112807 |
| Country of Origin | Finland |
