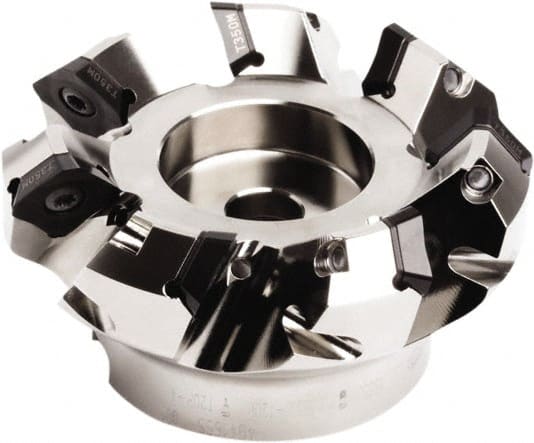

Seco - 176mm Cut Diam, 40mm Arbor Hole, 7.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, SE.. 1505 Insert, Right Hand Cut, 10 Flutes, Series QuattroMill
Item #: 89121602
Brand: Seco
Model #: 21876
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 176.00 |
| Cutting Diameter (Decimal Inch) | 6.9291 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SE.. 1505 |
| Series | QuattroMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum Body Diameter (Decimal Inch) | 6.2992 |
| Maximum RPM | 5200 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1505AFN-E10; SEEX 1505AFN-M12; SEEX 1505AFTN-M17; SEEX 1505ZZTN-M17; SEMX 1505AFTN-M18; SEMX 1505AFTN-MD20; SEMX 1505AFTN-ME15 |
