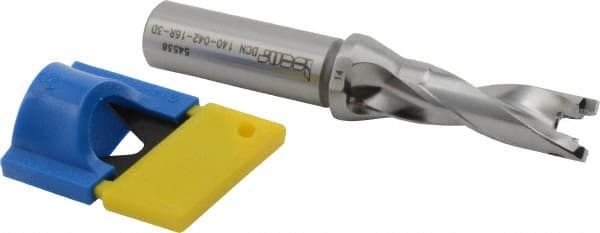

Iscar - 14mm to 14.4mm Diam, 3xD, 42mm Max Depth, 16mm Shank Diam, 110.1mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 14 Seat Size, 89130827 Toolholder, Series SumoCham
Item #: 89130827
Brand: Iscar
Model #: 3202797
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.5669 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 42.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 42.00 |
| Flute Length (Decimal Inch) | 1.6535 |
| Body Length (mm) | 62.10 |
| Body Length (Decimal Inch) | 2.4449 |
| Overall Length (mm) | 110.10 |
| Overall Length (Decimal Inch) | 4.3347 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
