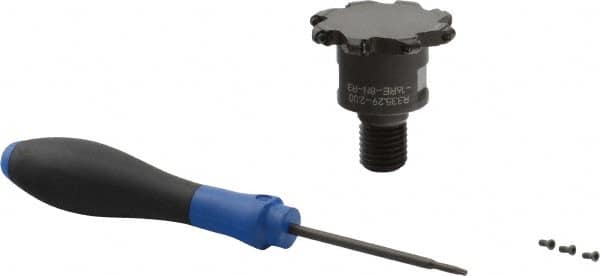

Seco - Modular Connection Connection, 0.236" Cutting Width, 0.409" Depth of Cut, 2" Cutter Diam, 8 Tooth Indexable Slotting Cutter - R335.29 Toolholder, RD.. 06.. Insert, Right Hand Cutting Direction
Item #: 89131726
Brand: Seco
Model #: 21490
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (Decimal Inch) | 0.4090 |
| Cutter Diameter (Decimal Inch) | 2.0000 |
| Modular Connection Size | M16 |
| Number of Teeth | 8 |
| Toolholder Style | R335.29 |
| Series | R335.29 |
| Insert Style | RD.. 06.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 30200 |
| Minimum Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Cutting Width (Decimal Inch) | 0.2360 |
| Radius | Yes |
| Complete Insert Compatibility1 | RDHT 06T1M0-E02; RDHW 06T1M0-MD02 |
