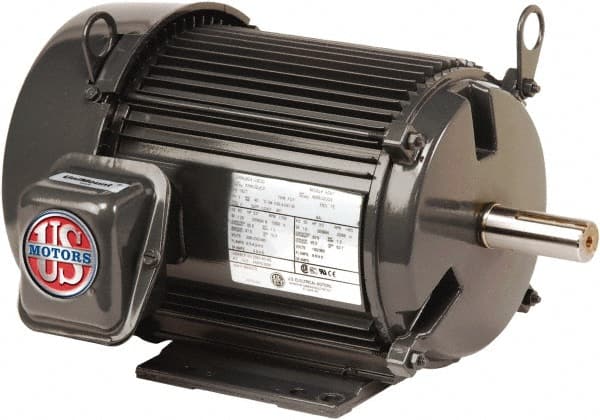

20 hp, TEFC Enclosure, No Thermal Protection, 3550, 2930 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 256 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 53-46/23 Full Load Amps, F Class Insula
Item #: 89228407
Brand: US Motors
Model #: U20P1DC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 20 hp old; 20 h; 20 W; 20 hp; 20 |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 20 hp old; 20 h; 20 W; 20 hp |
| Name Plate RPMs | 3550, 2930 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 256 |
| Mount Type | C-Face w/Base |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment |
| Full Load Amperage | 53-46/23 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
