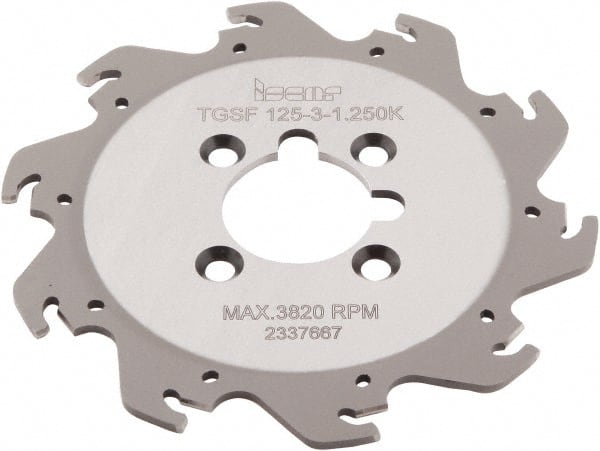

Iscar - Arbor Hole Connection, 0.118" Cutting Width, 1.36" Depth of Cut, 4.921" Cutter Diam, 1-1/4" Hole Diam, 10 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG N3\x85 Insert, Right Hand Cutting Direction
Item #: 89246748
Brand: Iscar
Model #: 2301832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 1.3600 |
| Cutter Diameter (Decimal Inch) | 4.9210 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 10 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG N3 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Maximum RPM | 640 |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (Decimal Inch) | 0.1250 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Weldon Flat | No |
| Manufacturers Catalog Number | TGSF 125-3-1.250K |
