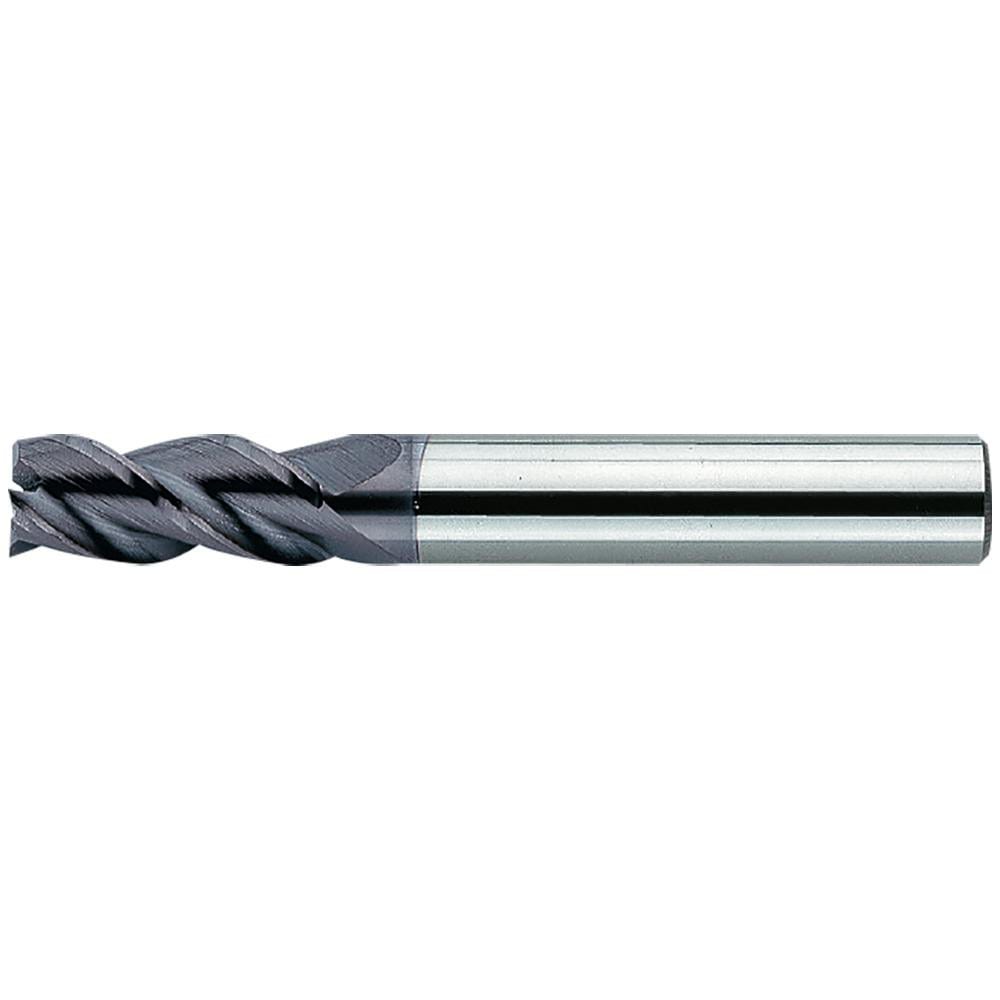

Square End Mill: 1/2" Dia, 3 Flute, Solid Carbide
Item #: 10310175
Brand: Mitsubishi
Model #: 10579558
Product Specifications
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (mm) | 31.75 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | High-Temp Alloy; Stainless Steel; Hardened Materials |
| Secondary Workpiece Material Code | S; H; M |
| Coating/Finish | AlTiCrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 1.2500 |
| Neck Length (mm) | 31.75 |
| Mill Diameter Tolerance | 0; -0.012 |
| Shank Diameter Tolerance | h6 |
| Series | M-Plus Endmill MP3MC |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
