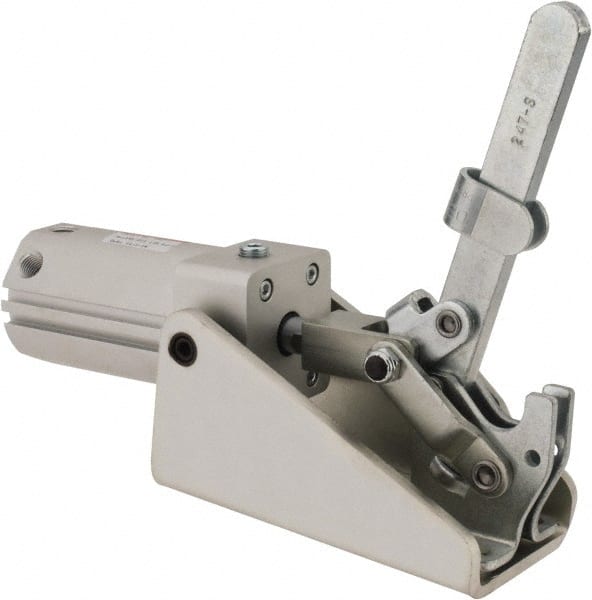

De-Sta-Co - 1,000 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/4 NPT Port, 145 Max psi, 94° Bar Opening, 57.15mm Height Under Bar
Item #: 89305205
Brand: De-Sta-Co
Model #: 847-S
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (N) | 4450 |
| Holding Capacity - Inner (Lb.) | 1000 |
| Height Under Bar (mm) | 57.15 |
| Height Under Bar (Decimal Inch) | 2.25 |
| Port Size | 1/4 NPT |
| Bar Opening (Degrees) | 94 |
| Length Distance Between Mount Holes (mm) | 31.75 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Width Distance Between Mount Holes (mm) | 45.21 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.7800 |
| Clamping Force - Inner (N) | 4248 |
| Clamping Force - Inner (Lb.) | 948 |
| Bar Extension (Decimal Inch) | 4.8700 |
| Bar Extension (mm) | 123.70 |
| Overall Open Length (mm) | 263.40 |
| Overall Open Length (Decimal Inch) | 10.38 |
| Overall Closed Length (mm) | 387.20 |
| Overall Closed Length (Decimal Inch) | 15.25 |
| Overall Open Height (Decimal Inch) | 9.27 |
| Overall Open Height (mm) | 235.30 |
| Overall Closed Height (mm) | 111.70 |
| Overall Closed Height (Decimal Inch) | 4.40 |
| Outer Load Capacity (N) | 2890 |
| Outer Clamping Force (N) | 1912 |
| Outer Clamping Force (Lb.) | 426 |
| Maximum Air Pressure (psig) | 145.00 |
| Maximum Air Pressure (bar) | 10.00 |
| Mounting Hole Size (mm) | 8.64 |
| Mounting Hole Size (Decimal Inch) | 0.3400 |
| Bar Style | Solid |
| Bar End Type | Open |
| Maximum Mechanical Advantage | 1.8:1; 4.0:1 |
| Sensor Compatibility | Round; T-Slot |
| Cylinder Bore Size (mm) | 52.07 |
| Cylinder Bore Size (Decimal Inch) | 2.0500 |
| Spindle Thread Size | 1/2; M12 |
| Maximum Operating Temperature (C) | 90.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Includes | Bolt Retainer |
