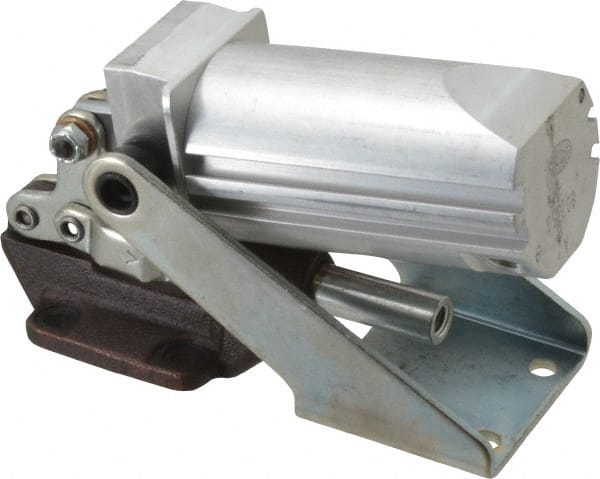

De-Sta-Co - 600 Lb Capacity, 3/4" Plunger Travel, 5/16-18 x 5/16" Plunger, 1/8 NPT Port, 3,015 N at 5 Bar, Air Power Straight Line Action Clamp - 1.09" Centerline Height, 9.86" Overall Closed Length x 2.93" Overall Closed Height, 64 Max psig, 14 to 194°F
Item #: 89305304
Brand: De-Sta-Co
Model #: 803
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Load Capacity (N) | 2668.93 |
| Load Capacity (Lb.) | 600.00 |
| Plunger Travel (mm) | 19.05 |
| Plunger Travel (Decimal Inch) | 0.7500 |
| Plunger Thread Size | 5/16-18 |
| Plunger Diameter (Inch) | 5/16 |
| Port Size | 1/8 NPT |
| Clamping Force @ 5 Bar (N) | 3015.00 |
| Plunger Centerline Height (mm) | 27.69 |
| Plunger Centerline Height (Decimal Inch) | 1.0900 |
| Overall Closed Length (mm) | 250.40 |
| Overall Closed Length (Decimal Inch) | 9.86 |
| Overall Closed Height (mm) | 74.30 |
| Overall Closed Height (Decimal Inch) | 2.93 |
| Length Distance Between Mount Holes (mm) | 36.58 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.4400 |
| Width Distance Between Mount Holes (mm) | 33.34 |
| Width Distance Between Mount Holes (Inch) | 1-5/16 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3125 |
| Maximum Air Pressure (psig) | 64.00 |
| Maximum Air Pressure (bar) | 4.41 |
| Sensor Compatibility | Round; T-Slot |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Maximum Operating Temperature (C) | 90.00 |
