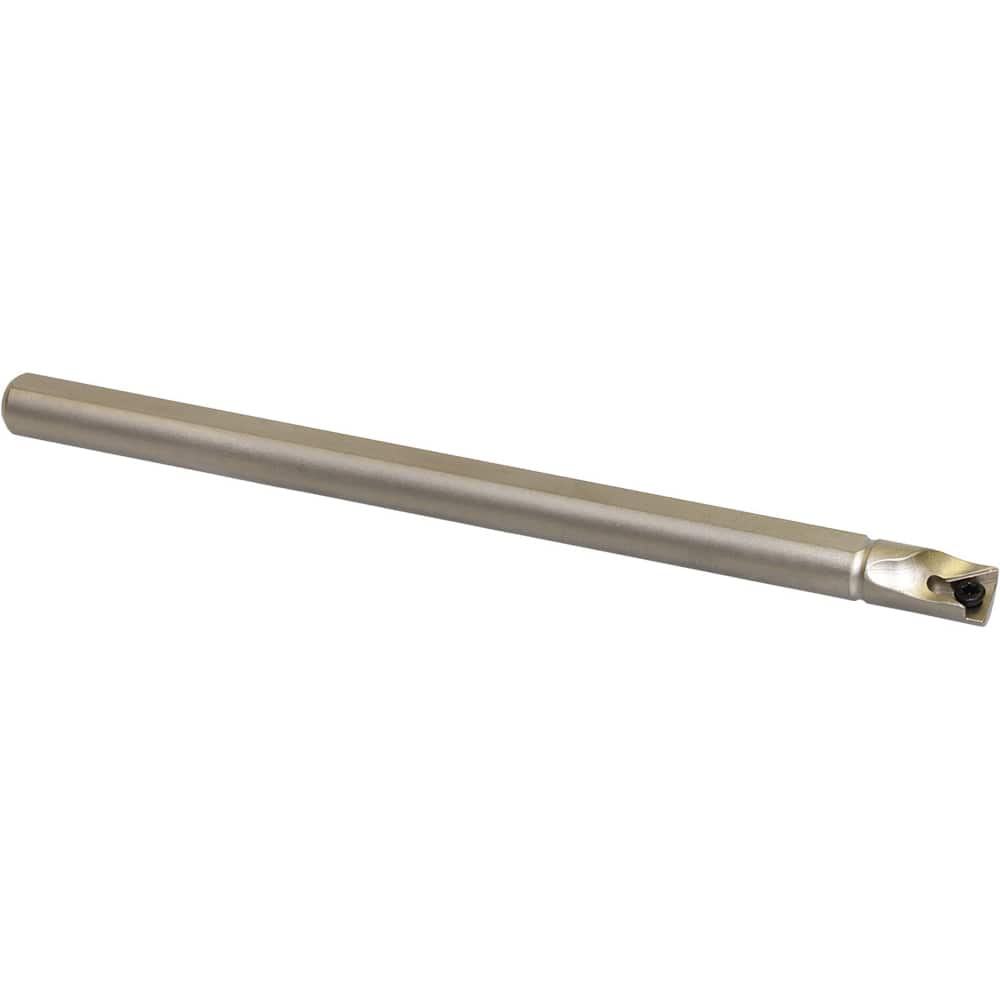

Kyocera - 7.92mm Min Bore, 12mm Max Depth, Left Hand S...STLB Indexable Boring Bar
Item #: 89342133
Brand: Kyocera
Model #: 8826613
Product Specifications
| Toolholder Style | S...STLB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 7.920 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 12.00 |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 0.25 |
| Insert Compatibility | TBGT121?; TBMT121?; TBGW121?; TBMT121? |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 3.81 |
| Insert Thickness (Inch) | 1/16 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | -12 (Radial);0 (Axial) |
| Toolholder Material | Steel |
