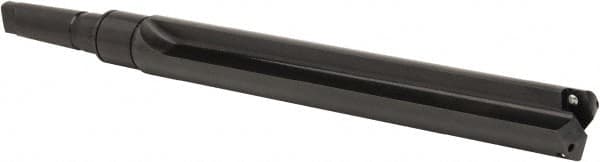

Allied Machine and Engineering - Series 5, 2-1/2 to 3-1/2" Diam, 5MT Taper Shank, Straight Flute Spade Drill - 18-1/4" Max Depth, 22-13/16" Body Length, 28-7/16" OAL, Extended Length, Through Coolant
Item #: 89365423
Brand: Allied Machine and Engineering
Model #: 25050S-005I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 5 |
| Minimum Drill Diameter (Inch) | 2-1/2 |
| Maximum Drill Diameter (Inch) | 3-1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | 5MT |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 28-7/16 |
| Maximum Drill Depth (Inch) | 18-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 20 |
| Body Length (Inch) | 22-13/16 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-6SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/2 |
