Turning Insert: CCMT21.52PSS T6120, Carbide
Item #: 20890141
Brand: Tungaloy
Model #: 6994507

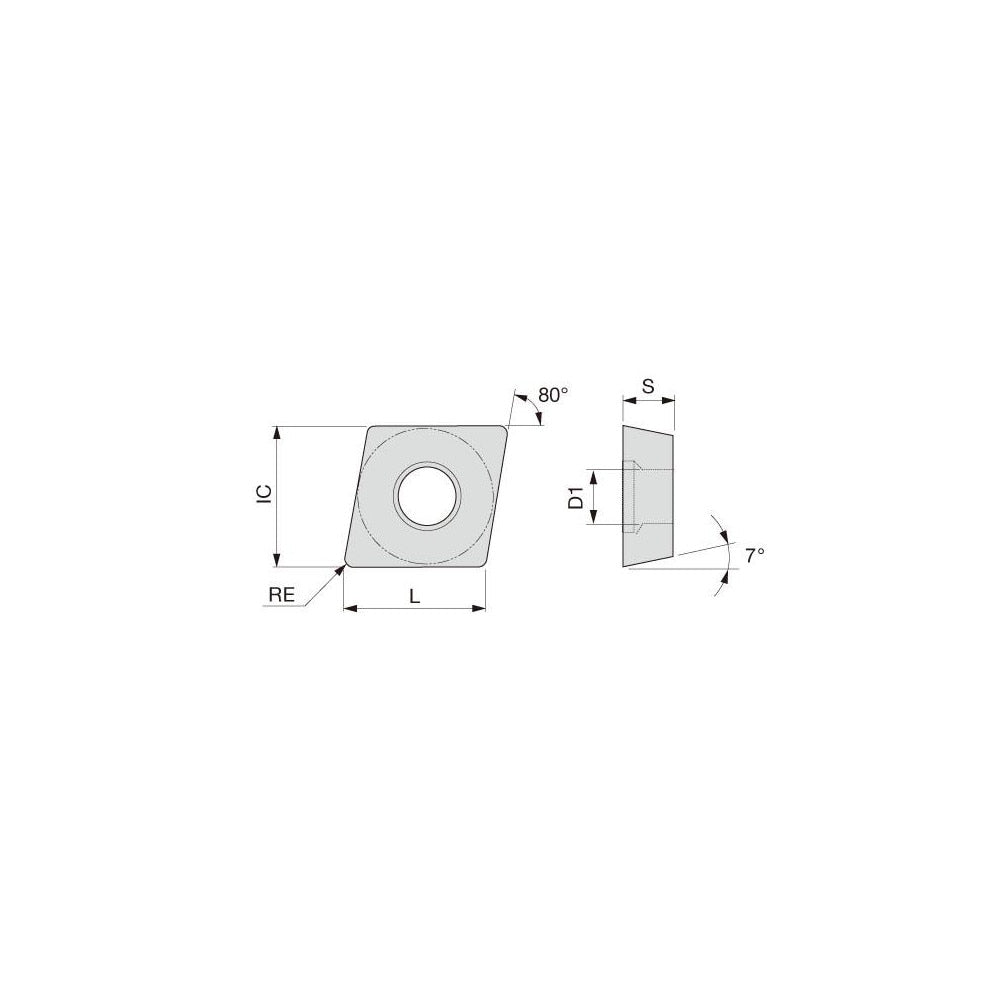

Product Specifications
| ANSI Insert Code | CCMT21.52 |
| ISO Insert Code | CCMT060208 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | T6120 |
| Coating/Finish | TiCN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CCMT-PSS |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2560 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | CCMT060208-PSS T6120 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6994507 |
| Material Grade | M20; M10; P10; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | PSS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CCMT 21.52 PSS |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 21.52 |
| ISO Size Code | 060208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.52 |
