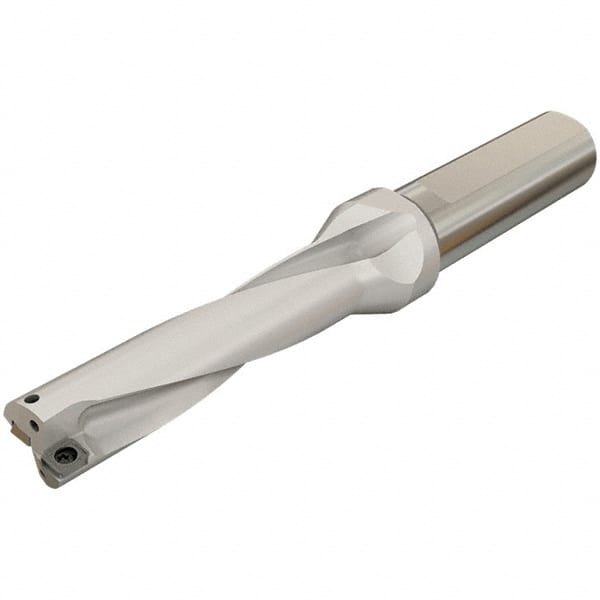

Iscar - 96mm Max Drill Depth, 4xD, 24mm Diam, Indexable Insert Drill - 25mm Shank Diam, Whistle Notch Shank
Item #: 89466791
Brand: Iscar
Model #: 3201648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 24.00 |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 96.00 |
| Maximum Drill Depth (Decimal Inch) | 3.7795 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 26.00 |
| Overall Length/Projection (mm) | 81.00 |
| Overall Length/Projection (Decimal Inch) | 3.1890 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 4.5669 |
| Body Length (mm) | 116.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 32.00 |
| Collar Diameter (Decimal Inch) | 1.2598 |
| Series | DR-TWIST |
