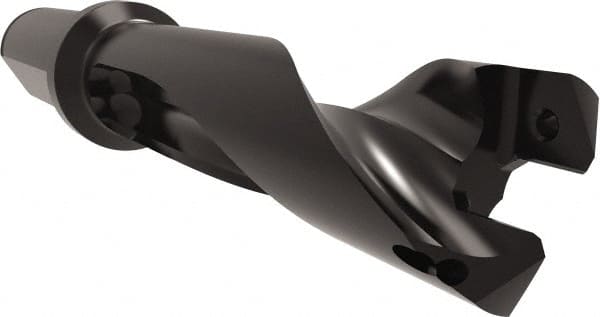

Allied Machine and Engineering - 24 to 25.78mm Diam, 3xD, 3-5/64" Max Depth, 1" Shank Diam, 6-49/64" OAL, Replaceable Tip Drill - Series 24
Item #: 89531958
Brand: Allied Machine and Engineering
Model #: 60324S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 25.78 |
| Maximum Drill Diameter (Decimal Inch) | 1.0150 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.0781 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | NonThrough Coolant |
| Shank Type | Straight Shank |
| Proprietary Coating Designation | AM200 |
| Toolholder Coating | Proprietary |
| Overall Length (Inch) | 6-49/64 |
