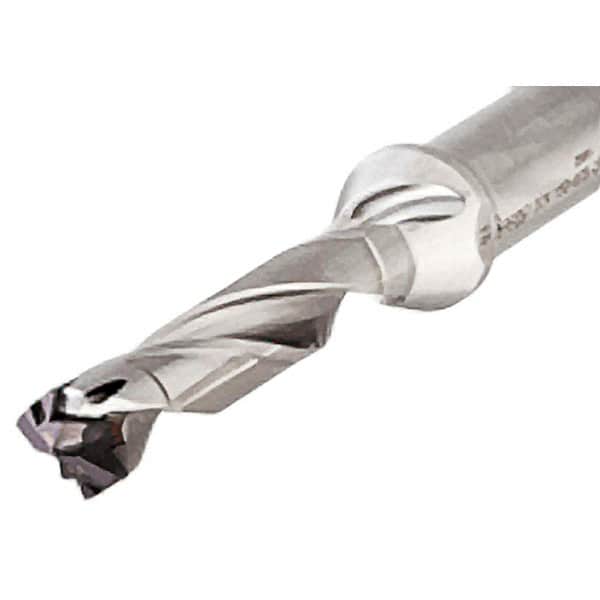

Iscar - 10.5mm to 10.91mm Diam, 5xD, 53mm Max Depth, 16mm Shank Diam, 116.79mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 89661193 Toolholder, Series SumoCham
Item #: 89661193
Brand: Iscar
Model #: 3202668
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 10.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.4137 |
| Maximum Drill Diameter (mm) | 10.91 |
| Maximum Drill Diameter (Decimal Inch) | 0.4295 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0882 |
| Maximum Drill Depth (mm) | 53.04 |
| Shank Diameter (mm) | 16.01 |
| Shank Diameter (Decimal Inch) | 0.6304 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 68.75 |
| Body Length (Decimal Inch) | 2.7068 |
| Overall Length (mm) | 116.79 |
| Overall Length (Decimal Inch) | 4.5980 |
| Shank Length (mm) | 48.04 |
| Shank Length (Decimal Inch) | 1.8912 |
