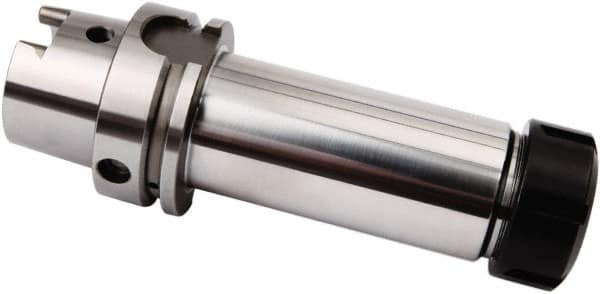

Accupro - 1/32" to 3/8" Capacity, 3" Projection, HSK63A Hollow Taper, ER16 Collet Chuck - 0.003mm TIR, Through-Spindle
Item #: 89667950
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/32 |
| Minimum Collet Capacity (Decimal Inch) | 0.0313 |
| Minimum Collet Capacity (mm) | 0.79 |
| Maximum Collet Capacity (mm) | 9.53 |
| Maximum Collet Capacity (Inch) | 3/8 |
| Maximum Collet Capacity (Decimal Inch) | 0.3750 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1020 |
| Collet Nut Diameter (mm) | 27.99 |
