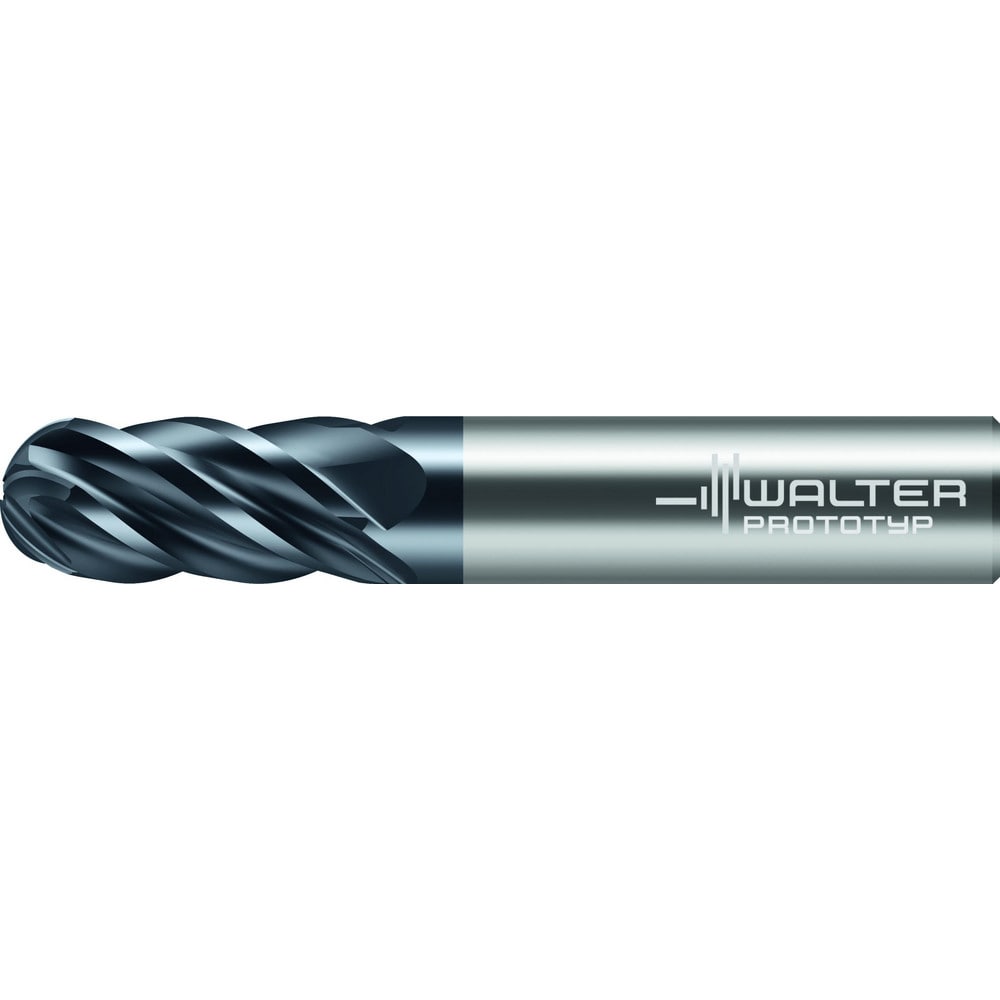

Ball End Mill: 3/4" Dia, 2-1/4" LOC, 5 Flute, Solid Carbide
Item #: 06942593
Brand: Walter-Prototyp
Model #: 8418417
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 2-1/4 |
| Coating/Finish | nACo |
| Overall Length (Inch) | 5 |
| Shank Diameter (Inch) | 3/4 |
| Extended Reach | Yes |
| Variable Helix | Yes |
| Variable Index | No |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.5000+ |
| Length Type | Extended |
| Helix Style | Variable |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Nose Radius (Decimal Inch) | 0.3750 |
| Neck Length (Decimal Inch) | 1.0570 |
| Reach Length (Decimal Inch) | 3.3070 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Material Grade | WJ30EM |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | MA475 |
| Flute Type | Spiral |
| UNSPSC Code | 23241614 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Close |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Manufacturers Catalog Number | MA475.19.1A5DJ-WJ30EM |
| System Of Measurement | Fractional Inch |
