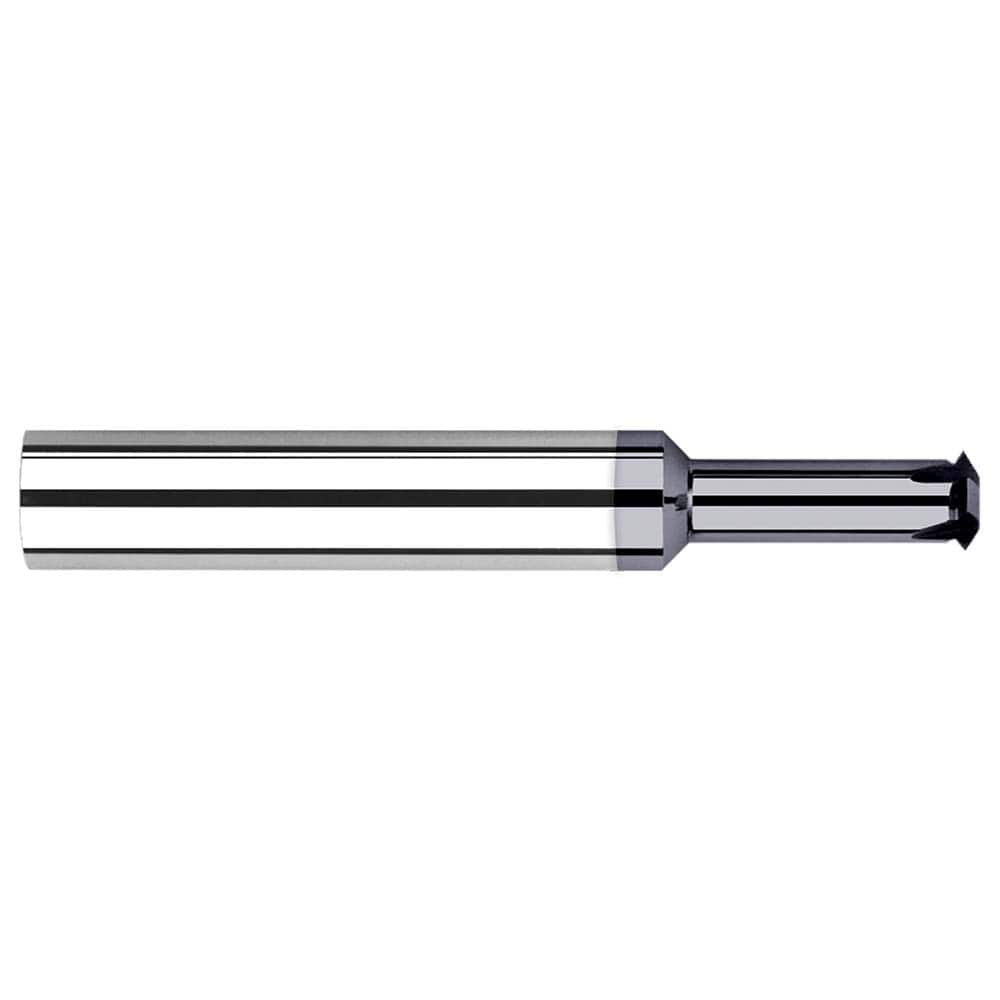

Harvey Tool - Single Profile Thread Mills; Maximum Threads Per Inch: 32 ; Minimum Threads Per Inch: 10 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 3/4 ; Cutting Diameter (Inch): 0.4950 ; Shank Diameter (Inch): 1/2
Item #: 89917447
Brand: Harvey Tool
Model #: 41480-C3
Product Specifications
Single Profile Thread Mills; Maximum Threads Per Inch: 32 ; Minimum Threads Per Inch: 10 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 3/4 ; Cutting Diameter (Inch): 0.4950 ; Shank Diameter (Inch): 1/2
| Maximum Threads Per Inch | 32 |
| Minimum Threads Per Inch | 10 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | 3/4 |
| Cutting Diameter (Inch) | 0.4950 |
| Shank Diameter (Inch) | 1/2 |
| Material | Solid Carbide |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 0.3250 |
| Neck Length (Decimal Inch) | 1.3750 |
| Thread Size | 3/4-10 to 3/4-32 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN |
