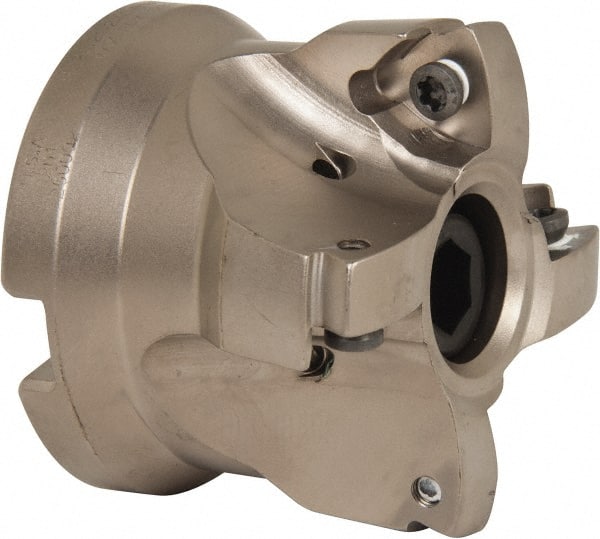

Seco - 4 Inserts, 1.34" Cutter Diam, 0.08" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 0.32" Keyway Width, 1.6" High, R220.21 Toolholder, 218.19-160.. Inserts, Series R220.21
Item #: 89976914
Brand: Seco
Model #: 07340
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.3400 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.6000 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | 218.19-160.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12900 |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3200 |
