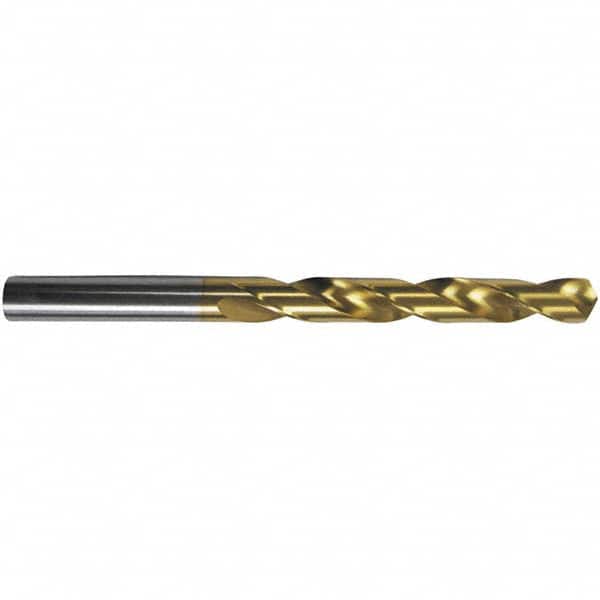

Jobber Length Drill Bit: 0.0268″ Dia, 118 °, High Speed Steel TiN Finish, 1.1024″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 89981609
Brand: Guhring
Model #: 9006510006800
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0268 |
| Drill Bit Size (mm) | 0.68 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0268 |
| Overall Length (mm) | 28.00 |
| Overall Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 9.00 |
| Flute Length (Decimal Inch) | 0.3543 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 0.68 |
| Maximum Drilling Depth (Decimal Inch) | 0.3543 |
| Maximum Drilling Depth (mm) | 9.00 |
| Shank Length (mm) | 19.00 |
| Shank Length (Decimal Inch) | 0.7480 |
| Drill Bit Diameter Tolerance | +0.000 to -0.012 mm |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Material Grade | M2 |
| Specification Designation | DIN |
