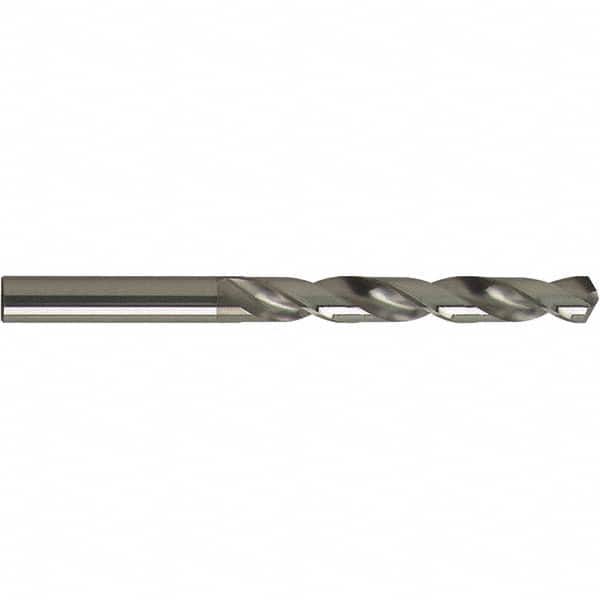

Guhring - 6.4mm 118° Cobalt Jobber Drill
Item #: 97437370
Brand: Guhring
Model #: 9003050064000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.40 |
| Drill Bit Size (Decimal Inch) | 0.2520 |
| Drill Point Angle | 118 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 63.00 |
| Overall Length (mm) | 101.00 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.2520 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.022 to 0.000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Series/List | 305 |
