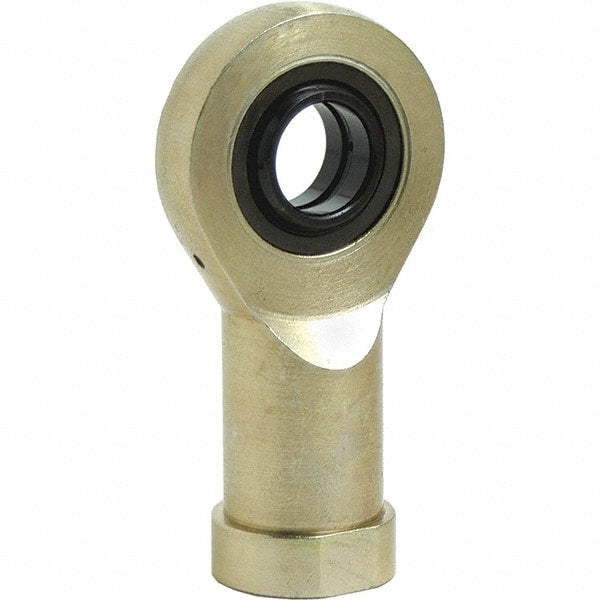

Tritan - 0.6693" ID, 2.7165" Max OD, 10,116 Lb Max Static Cap, Female Spherical Rod End - M16 RH, 0.5512" Shank Diam, 1.3386" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 90159658
Brand: Tritan
Model #: SI 17ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.6693 |
| Inside Diameter (mm) | 431.8000 |
| Inside Diameter (Inch) | 0.669 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 2.7165 |
| Maximum Outside Diameter (mm) | 1752.60 |
| Maximum Outside Diameter (Inch) | 3 |
| Maximum Outside Diameter (Inch) | 2.7165 |
| Maximum Static Load Capacity (Pounds) | 10116.0 |
| Width (Inch) | 1.810 |
| Width (Decimal Inch) | 1.8100 |
| Width (mm) | 46.00 |
| Thread Size | M16 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 14.0000 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (Inch) | 0.551 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 1.3386 |
| Shank Length (mm) | 34.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 4.450 |
| Overall Length (mm) | 113.0000 |
| Overall Length (Decimal Inch) | 4.4500 |
