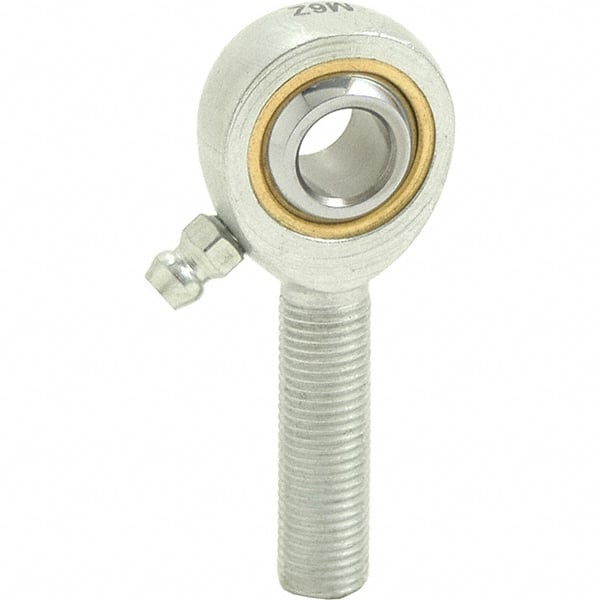

Tritan - 1" ID, 5-1/2" Max OD, 40,000 Lb Max Static Cap, Male Spherical Rod End - 1-1/4 - 12 RH, 1-3/8" Shank Diam, 2-1/8" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway
Item #: 90159880
Brand: Tritan
Model #: HM 16G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (mm) | 25.4000 |
| Inside Diameter (Inch) | 1 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 5.5000 |
| Maximum Outside Diameter (mm) | 139.70 |
| Maximum Outside Diameter (Inch) | 5-1/2 |
| Maximum Outside Diameter (Inch) | 5-1/2 |
| Maximum Static Load Capacity (Pounds) | 40000.0 |
| Width (Inch) | 2-3/4 |
| Width (Decimal Inch) | 2.7500 |
| Width (mm) | 69.90 |
| Thread Size | 1-1/4-12 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 34.9000 |
| Shank Diameter (Decimal Inch) | 1.3750 |
| Shank Diameter (Inch) | 1-3/8 |
| Raceway Material | Sintered Oil Impregnated Bronze |
| Shank Length (Decimal Inch) | 2.1250 |
| Shank Length (mm) | 54.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (mm) | 139.7000 |
| Overall Length (Decimal Inch) | 5.5000 |
