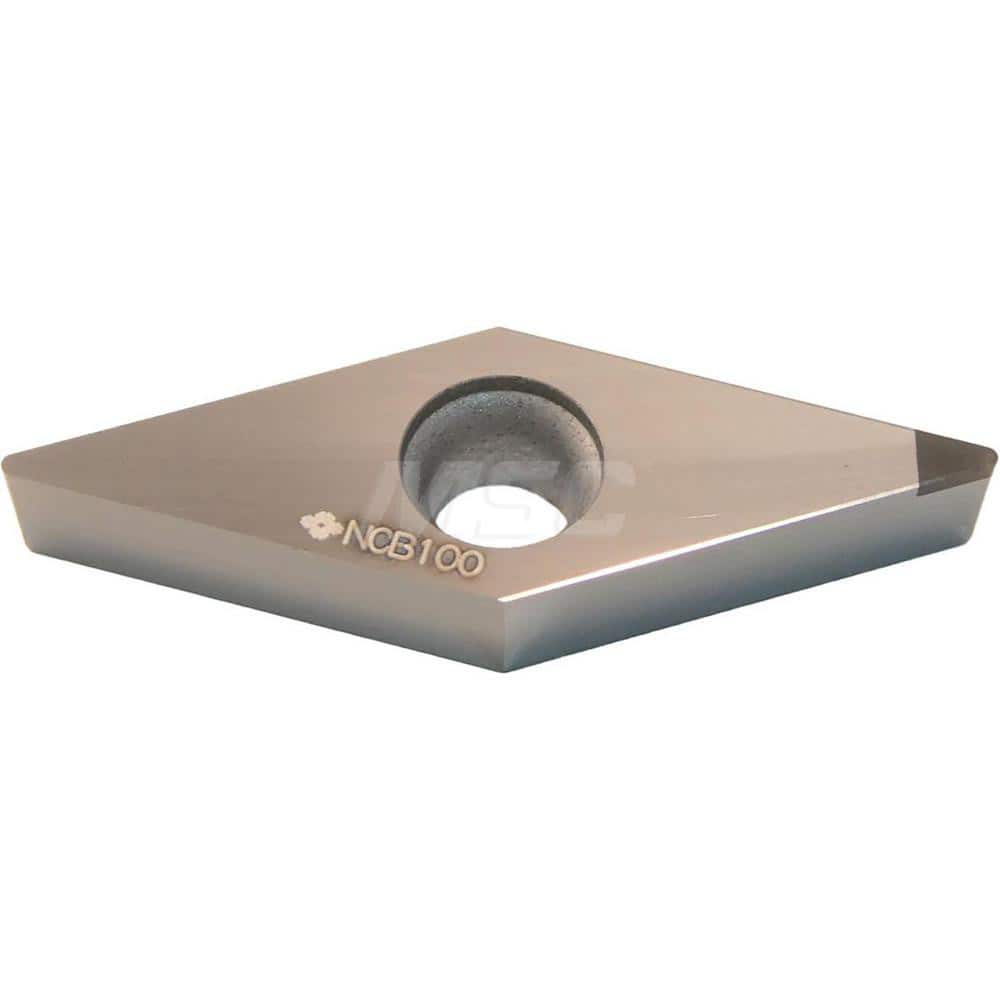

Turning Insert: NUVBGA331 NCB100, Cubic Boron Nitride Uncoated Finish, Neutral, 0.0984″ Long, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series NCB100
Item #: 90238908
Brand: Sumitomo
Model #: 16P5FDS
Product Specifications
| Insert Style | VBG |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | NCB100 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | NCB100 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0984 |
| Insert Length (mm) | 2.50 |
| Iso Code | NU-VBGW160404 |
| Manufacturers Catalog Number | NUVBGA331-NCB100 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
