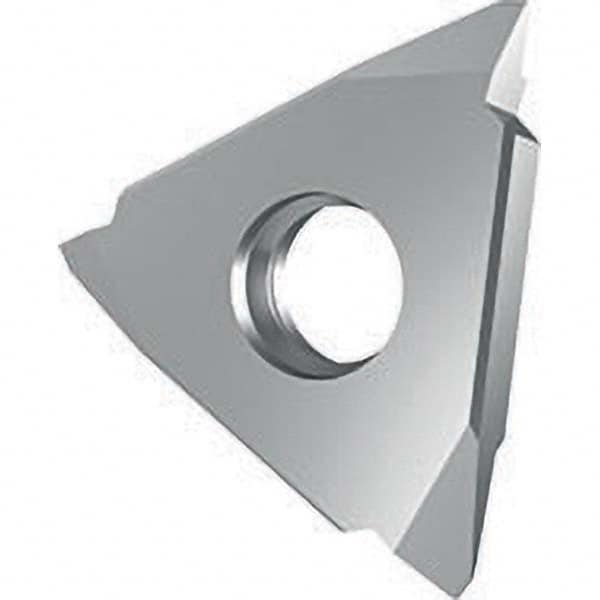

Threading Insert:04 Size, GG305 Style, Carbide Grade, Solid Carbide Uncoated Finish, 5 mm TPI, Series 25666
Item #: 90272295
Brand: Guhring
Model #: 9256660121000
Product Specifications
| Insert Style | GG305 |
| Insert Material | Solid Carbide |
| Thread Type | External |
| Material Grade | Carbide |
| Thread Standard | Partial Profile 60 Deg |
| Insert Hand | Right Hand |
| External Pitch | 5 mm |
| Included Angle | 60 |
| Series | 25666 |
| Coating Process | Uncoated |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (mm) | 0.72 |
| Thickness (mm) | 4.20 |
| Maximum Depth of Cut (mm) | 3.30 |
| Shape | Triangle |
| Insert Size | 04 |
| Finish Coating | Uncoated |
| Coolant Through | Noncoolant Through |
