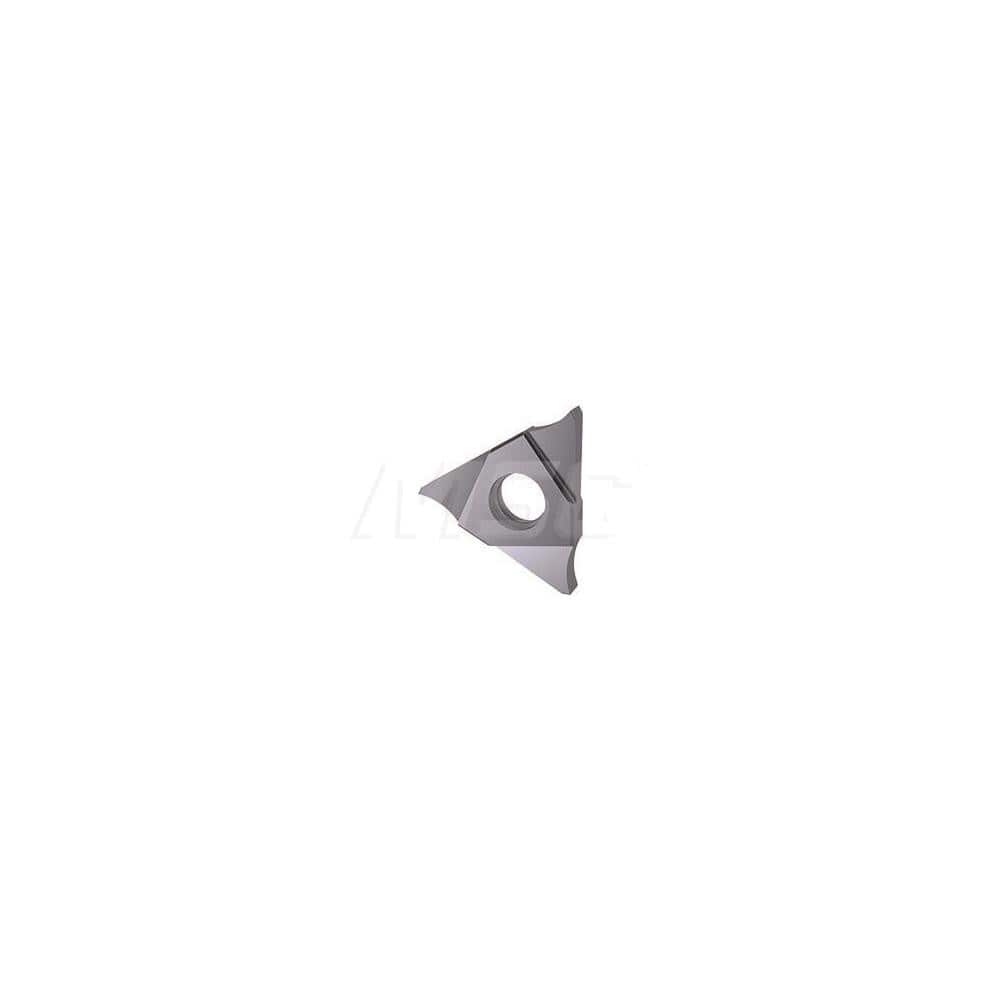

Grooving Insert: GE 30504, Solid Carbide TiCN Finish, Neutral, 1.5 mm Cutting Width, 3 mm Max Depth, Series 25606
Item #: 90273053
Brand: Guhring
Model #: 9256060120020
Product Specifications
| Insert Style | GE 305 |
| Insert Size Code | 15002004 |
| Insert Size | 04 |
| Insert Material | Solid Carbide |
| Material Grade | Fine-Grained |
| Cutting Width (mm) | 1.50 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1000 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | 25606 |
| Coating Process | PVD |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | S; M; N |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Standards | California PROP 65 |
| Coating/Finish | TiCN |
