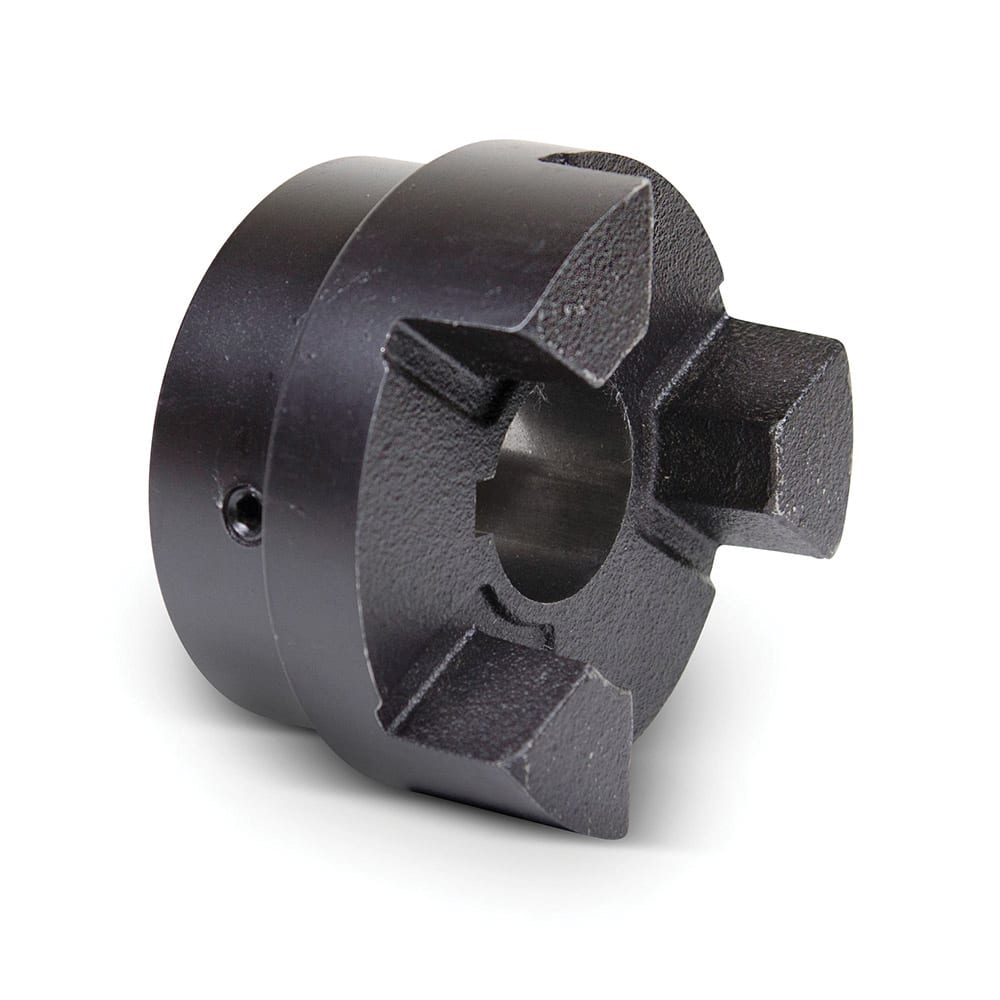

TB Wood's - Flexible Coupling; Type: Coupling Half ; Maximum Bore Diameter (Inch): 2 ; Outside Diameter (Decimal Inch): 4.5; 4.5 ; Outside Diameter (mm): 4.5 ; Overall Length (Inch): 1.94 ; Overall Length (Decimal Inch): 1.94
Item #: 90349721
Brand: TB Wood's
Model #: L1902
Product Specifications
Flexible Coupling; Type: Coupling Half ; Maximum Bore Diameter (Inch): 2 ; Outside Diameter (Decimal Inch): 4.5; 4.5 ; Outside Diameter (mm): 4.5 ; Overall Length (Inch): 1.94 ; Overall Length (Decimal Inch): 1.94
| Type | Coupling Half |
| Maximum Bore Diameter (Inch) | 2 |
| Outside Diameter (Decimal Inch) | 4.5; 4.5 |
| Outside Diameter (mm) | 4.5 |
| Overall Length (Inch) | 1.94 |
| Overall Length (Decimal Inch) | 1.94 |
| Material | Cast Iron |
| Special Item Information | For Complete Coupling, order two coupling hubs (of the same coupling size, bores can be different) and one spider. Component length shown is length through bore. |
| MaximumAssemblyOAL (Inch) | 4.88 |
| Coupling Size | L190 |
| Series | L-Jaw Coupling |
