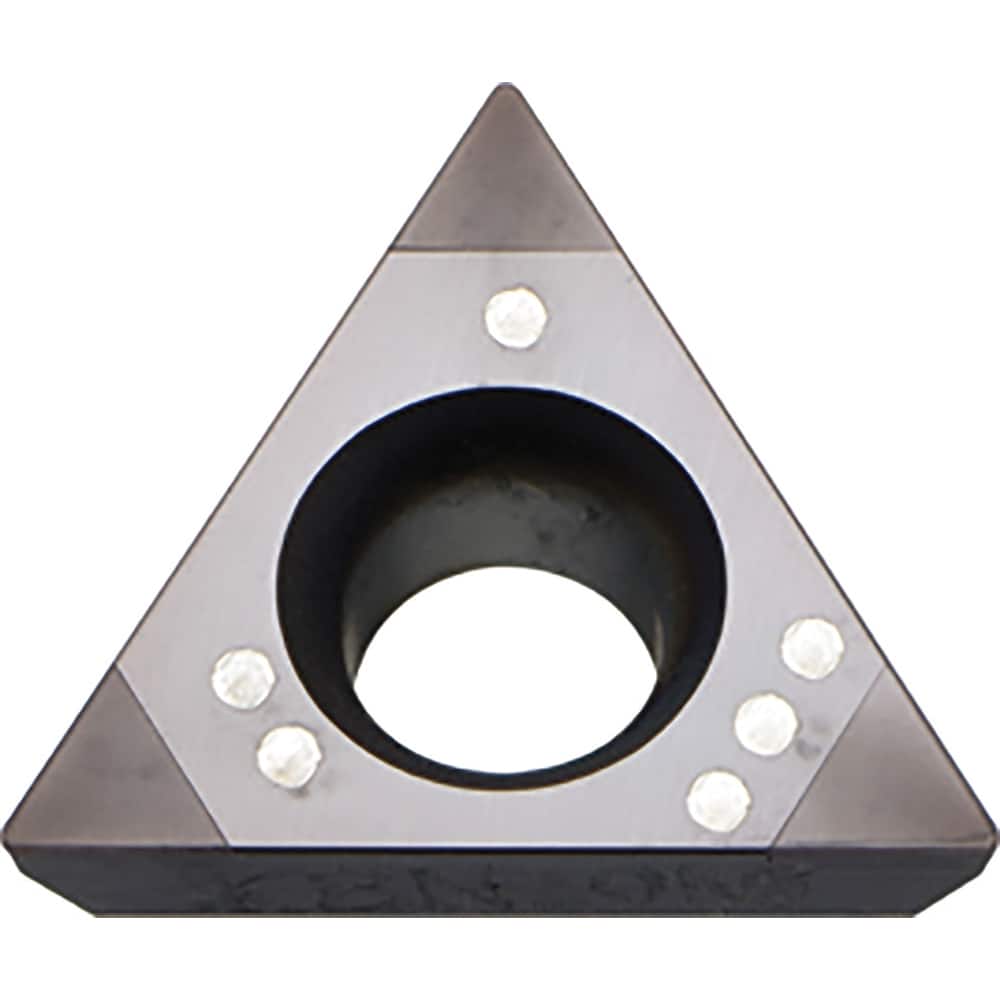

TPGB110308T00815ME CBN Turning Insert Megacoat Finish, Neutral, 1/4″ Inscribed Circle, 0.0315″ Corner Radius, 0.1252″ Thick, 60° Triangle, Series KBN
Item #: 90482365
Brand: Kyocera
Model #: TBB04943
Product Specifications
| Insert Style | TPGB |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Manufacturer Grade | KBN60M |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | KBN |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | K |
| Manufacturers Catalog Number | TPGB222T00315MEKBN60M |
| Chip Breaker | B |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
