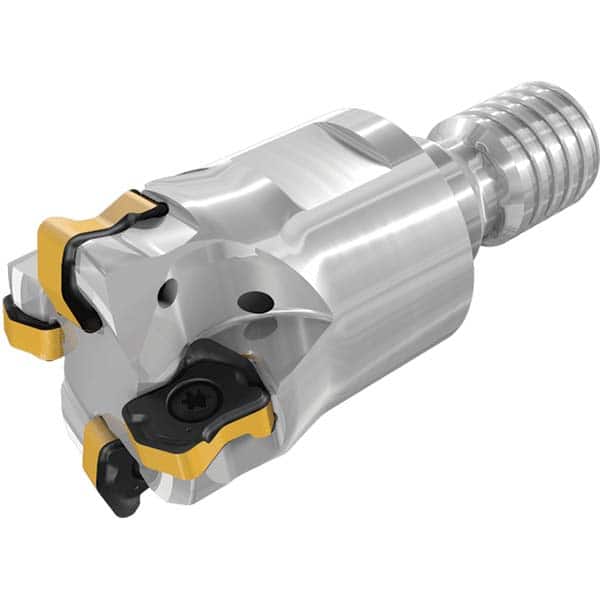

Iscar - Indexable High-Feed End Mills; Cutting Diameter (mm): 24.60 ; Maximum Depth of Cut (mm): 0.80 ; Shank Type: Modular Connection ; Modular Connection Size: M16 ; Number of Cutter Inserts: 5 ; Insert Style: FFX4
Item #: 90746751
Brand: Iscar
Model #: 3336691
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 24.60 ; Maximum Depth of Cut (mm): 0.80 ; Shank Type: Modular Connection ; Modular Connection Size: M16 ; Number of Cutter Inserts: 5 ; Insert Style: FFX4
| Cutting Diameter (mm) | 24.60 |
| Maximum Depth of Cut (mm) | 0.80 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 5 |
| Insert Style | FFX4 |
| Toolholder Style | FFX4 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 5 |
| Through Coolant | Coolant Through |
| Maximum Cutting Diameter (Decimal Inch) | 1.2590 |
| Overall Length (mm) | 60.00 |
| Modular Connection Thread Size | M16 |
| Toolholder Material | Steel |
| Head Length (mm) | 35.00 |
