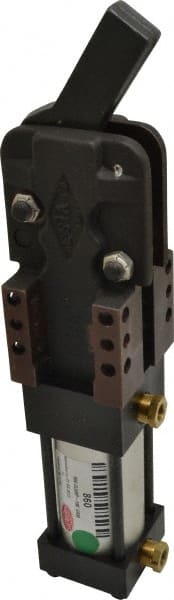

De-Sta-Co - 3,000 Lb Inner Hold Capacity, Vert Mount, Air Power Hold-Down Toggle Clamp - 3/8 NPT Port, 180° Bar Opening
Item #: 90912932
Brand: De-Sta-Co
Model #: 860
Exact Tooling IR#: 04
Features and Benefits
Vertical mounts are designed with the toggle at 90 degrees. The cylinder is mounted in either a vertical position or a position that is perpendicular to the clamping bar.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Vertical |
| Holding Capacity - Inner (Lb.) | 3000 |
| Port Size | 3/8 NPT |
| Bar Opening (Degrees) | 180 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.1900 |
| Clamping Force - Inner (Lb.) | 1250 |
| Overall Closed Length (Inch) | 14-19/32 |
| Overall Closed Length (Decimal Inch) | 12.44 |
| Overall Closed Height (Inch) | 2-15/16 |
| Overall Closed Height (Decimal Inch) | 2.94 |
| Air Requirement (psi) | 125 |
| Mounting Hole Size (Decimal Inch) | 0.3400 |
| Maximum Mechanical Advantage | 5:1 |
| Cylinder Bore Size (Decimal Inch) | 2.0000 |
| Includes | Magnetic Ring |
