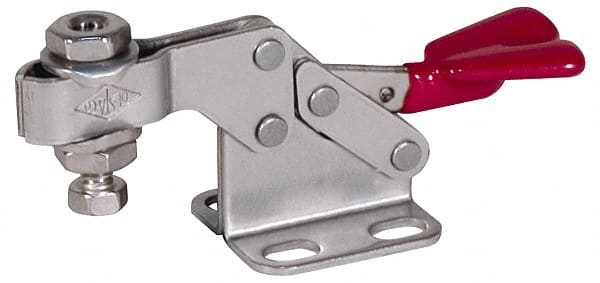

De-Sta-Co - 850 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 59° Handle Movement, 93° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 90937830
Brand: De-Sta-Co
Model #: 237-USS
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 3780.99 |
| Holding Capacity (Lb.) | 850.00 |
| Length Distance Between Mount Holes (mm) | 40.89 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.61 |
| Width Distance Between Mount Holes (mm) | 42.93 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6900 |
| Height Under Bar (mm) | 42.42 |
| Height Under Bar (Decimal Inch) | 1.6700 |
| Overall Length (Decimal Inch) | 10.6700 |
| Overall Height (mm) | 80.77 |
| Overall Height (Decimal Inch) | 3.1800 |
| Base Length (mm) | 56.90 |
| Base Length (Decimal Inch) | 2.2400 |
| Base Width (mm) | 57.91 |
| Base Width (Decimal Inch) | 2.2800 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter (mm) | 5.80 (Small); 8.80 (Large) |
| Mounting Hole Diameter (Decimal Inch) | 0.2300 (Small); 0.3500 (Large) |
| Front of Base To Tip Of Toggle Bar (mm) | 101.09 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.9800 |
| Bar Opening (Degrees) | 93.00 |
| Handle Movement (Degrees) | 59.00 |
| Maximum Mechanical Advantage | 2:1; 6:1 |
| Spindle Thread Size | 3/8; M10 |
| Spindle Length (Decimal Inch) | 2.5000 |
| Spindle Travel (mm) | 70.10 |
| Spindle Travel (Decimal Inch) | 2.7600 |
| Bar Width (Decimal Inch) | 0.7500 |
| Bar Width (mm) | 19.05 |
| Includes | Flanged Washers; Spindle Assembly |
