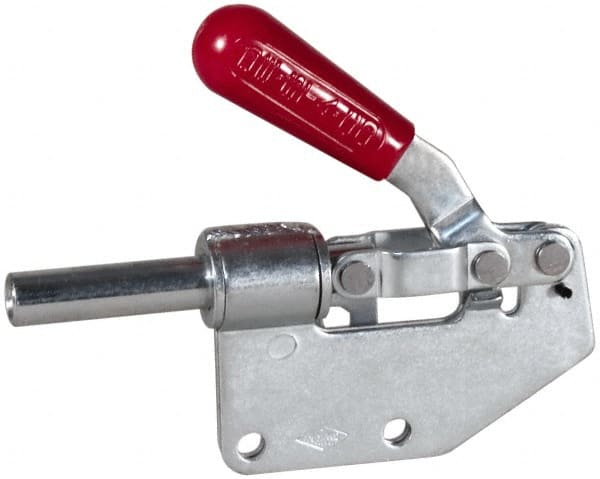

De-Sta-Co - 299 Lb Load Capacity, Straight Base, Carbon Steel, Standard Straight Line Action Clamp - 2 Mounting Holes, 0.27" Mounting Hole Diam, 0.44" Plunger Diam, Straight Handle
Item #: 90968736
Brand: De-Sta-Co
Model #: 609-B
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 1330.00 |
| Load Capacity (Lb.) | 299.00 |
| Plunger Travel (mm) | 31.75 |
| Plunger Travel (Decimal Inch) | 1.2500 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height (mm) | 24.64 |
| Plunger Centerline Height (Decimal Inch) | 0.9700 |
| Plunger Diameter (Decimal Inch) | 0.4400 |
| Plunger Diameter (mm) | 11.18 |
| Base Style | Straight |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 5.4600 |
| Overall Height (Decimal Inch) | 3.1700 |
| Base Width (Decimal Inch) | 0.2400 |
| Handle Color | Red |
| Number of Mounting Holes | 2 |
| Length Distance Between Mount Holes (mm) | 35.05 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Mounting Hole Diameter (mm) | 6.86 |
| Mounting Hole Diameter (Decimal Inch) | 0.2700 |
| Base Width (mm) | 6.10 |
| Overall Length (mm) | 138.68 |
| Overall Height (mm) | 80.52 |
| Maximum Mechanical Advantage | 36:1 (Pushing) |
