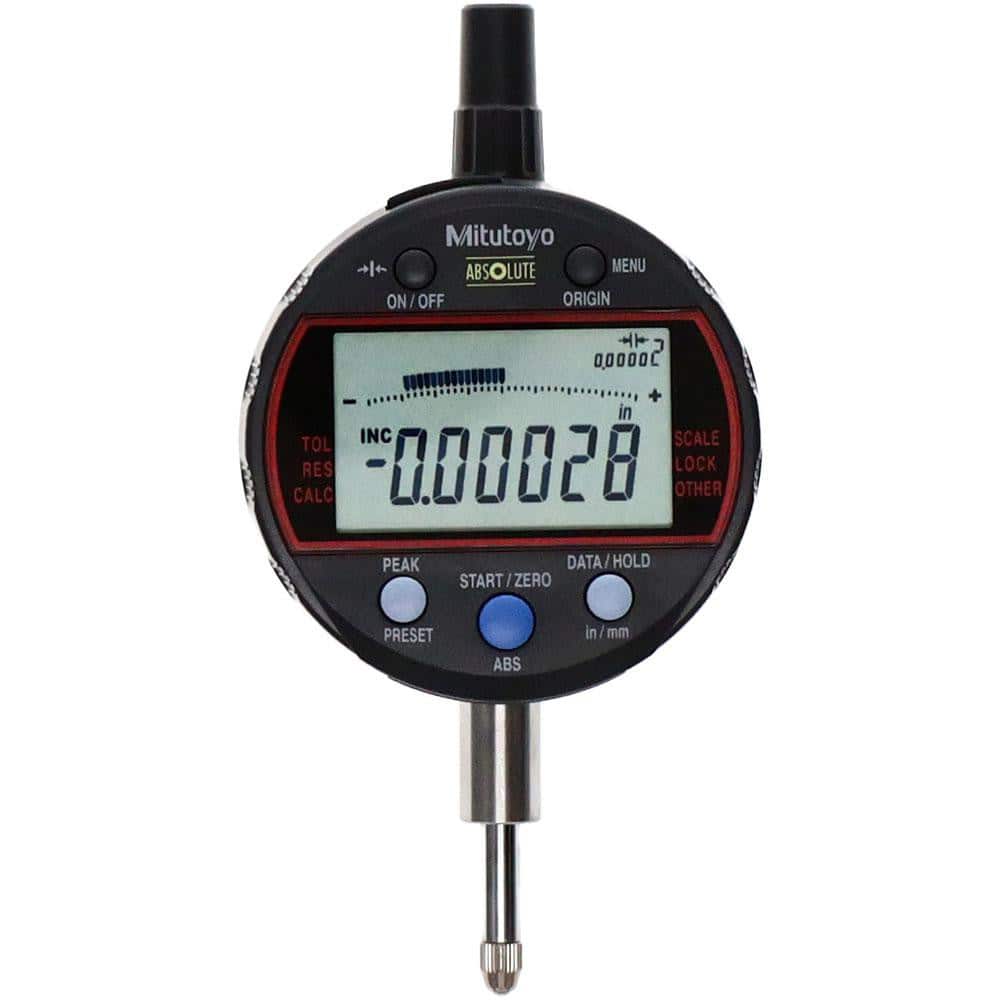

Electronic Drop Indicators; Back Type: Flat; Connection Type: Straight; Display Type: LCD; Accuracy (Decimal Inch): 0.000120; Calibrated: No; Measuring Force (N): 1.5; Minimum Measurement (mm): 0.00; Maximum Measurement (mm): 12.70; Maximum Measurement (D

Item #: 90978701
Brand: Mitutoyo
Model #: 543-342B-10

Product Specifications

Back Type Flat

Connection Type Straight

Display Type LCD

Accuracy (Decimal Inch) 0.000120

Calibrated No

Measuring Force (N) 1.5

Minimum Measurement (mm) 0.00

Maximum Measurement (mm) 12.70

Maximum Measurement (Decimal Inch) 0.5000

Contact Point Material Carbide

Power Source Battery

Batteries Included Yes

Resolution (mm) 0.0030

Resolution (Decimal Inch) 0.0001

Features Five buttons, status icons, and clear button indications allow for easy operation of a wide variety of functions.; Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.; The ABS (Absolute) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.

Includes CR2032 Battery

Back Type	Flat
Connection Type	Straight
Display Type	LCD
Accuracy (Decimal Inch)	0.000120
Calibrated	No
Measuring Force (N)	1.5
Minimum Measurement (mm)	0.00
Maximum Measurement (mm)	12.70
Maximum Measurement (Decimal Inch)	0.5000
Contact Point Material	Carbide
Power Source	Battery
Batteries Included	Yes
Resolution (mm)	0.0030
Resolution (Decimal Inch)	0.0001
Features	Five buttons, status icons, and clear button indications allow for easy operation of a wide variety of functions.; Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.; The ABS (Absolute) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
Includes	CR2032 Battery
