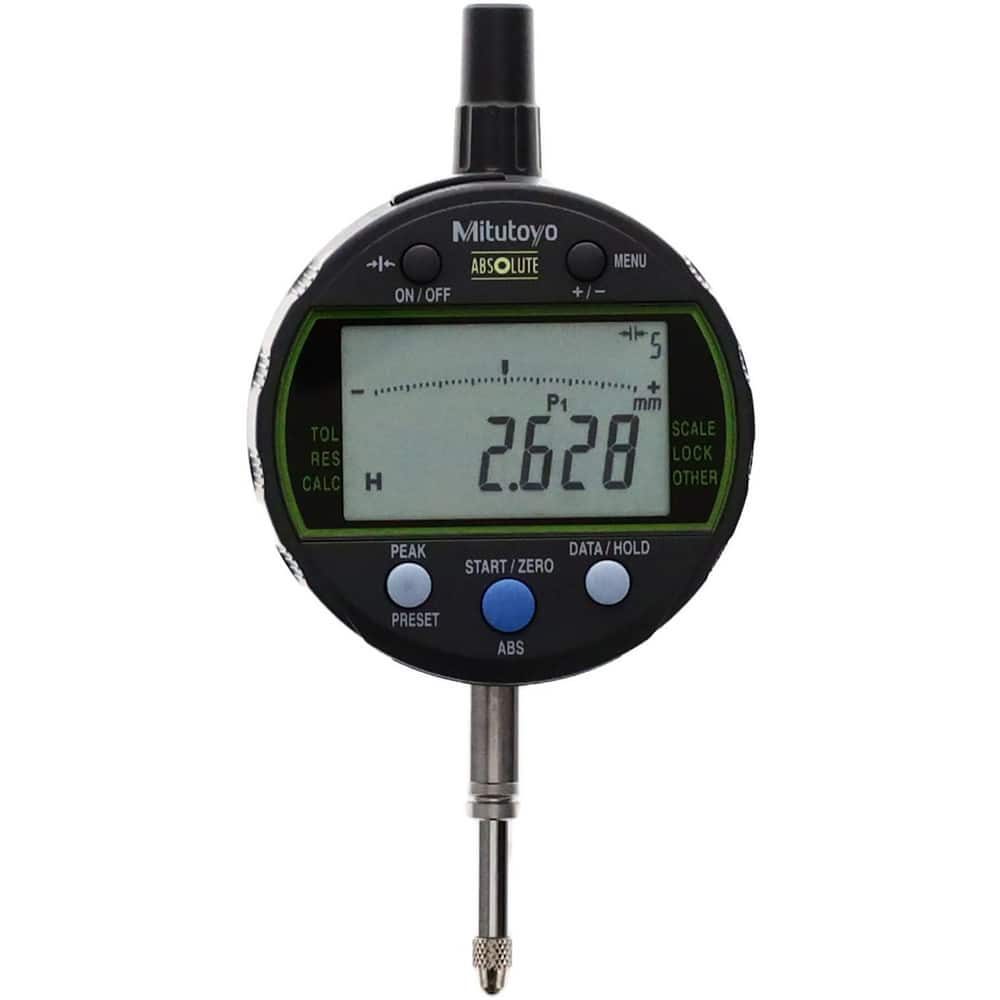

Electronic Drop Indicators; Back Type: Flat; Connection Type: Straight; Display Type: LCD; Accuracy (mm): 0.003; Calibrated: No; Measuring Force (N): 1.5; Minimum Measurement (mm): 0.00; Maximum Measurement (mm): 12.70; Contact Point Material: Carbide; Po

Item #: 90978727
Brand: Mitutoyo
Model #: 543-300-10

Product Specifications

Back Type Flat

Connection Type Straight

Display Type LCD

Accuracy (mm) 0.003

Calibrated No

Measuring Force (N) 1.5

Minimum Measurement (mm) 0.00

Maximum Measurement (mm) 12.70

Contact Point Material Carbide

Power Source Battery

Unit of Measure Metric

Batteries Included Yes

Resolution (Decimal Inch) 0.0010

Features Five buttons, status icons, and clear button indications allow for easy operation of a wide variety of functions.; Equipped with a data output port that enables incorporation into measurement networking and statistical proccess control systems.; The ABS (Absolute) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.

Includes CR2032 Battery

Back Type	Flat
Connection Type	Straight
Display Type	LCD
Accuracy (mm)	0.003
Calibrated	No
Measuring Force (N)	1.5
Minimum Measurement (mm)	0.00
Maximum Measurement (mm)	12.70
Contact Point Material	Carbide
Power Source	Battery
Unit of Measure	Metric
Batteries Included	Yes
Resolution (Decimal Inch)	0.0010
Features	Five buttons, status icons, and clear button indications allow for easy operation of a wide variety of functions.; Equipped with a data output port that enables incorporation into measurement networking and statistical proccess control systems.; The ABS (Absolute) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
Includes	CR2032 Battery
