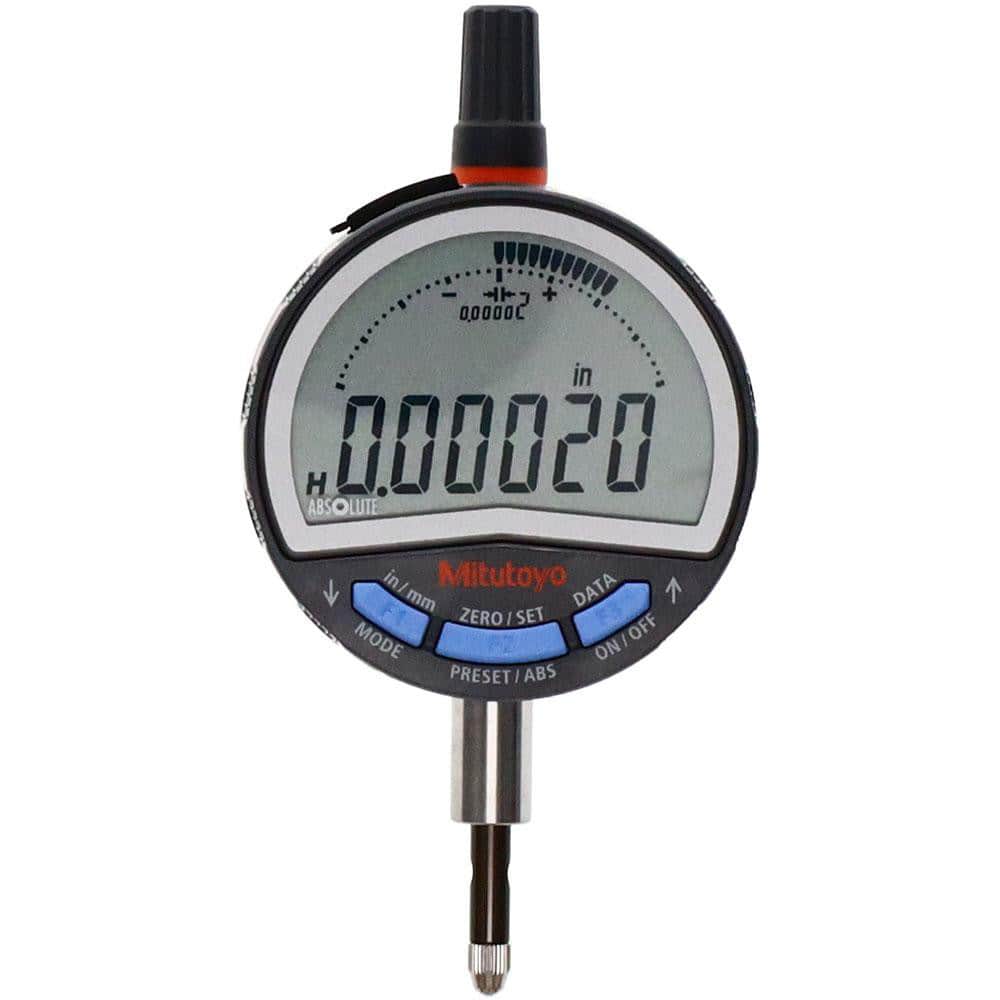

Electronic Drop Indicators; Back Type: Flat; Connection Type: Straight; Display Type: LCD; Accuracy (Decimal Inch): .0001″; Calibrated: No; Measuring Force (N): 1.5; Minimum Measurement (mm): 0.00; Maximum Measurement (mm): 12.70; Maximum Measurement (Dec
Item #: 90978750
Brand: Mitutoyo
Model #: 543-707B
Product Specifications
| Back Type | Flat |
| Connection Type | Straight |
| Display Type | LCD |
| Accuracy (Decimal Inch) | .0001" |
| Calibrated | No |
| Measuring Force (N) | 1.5 |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 12.70 |
| Maximum Measurement (Decimal Inch) | 0.5000 |
| Contact Point Material | Carbide |
| Power Source | Battery |
| Batteries Included | Yes |
| Resolution (Decimal Inch) | 0.00002/0.00005/0.0001/0.0002/0.0005 |
| Features | Tolerance judgement can be performed by setting upper and lower tolerance limits.; Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.; An analog bar has been integrated to make upper/lower limit and turnover point reading more comfortable |
| Includes | CR2032 Battery |
