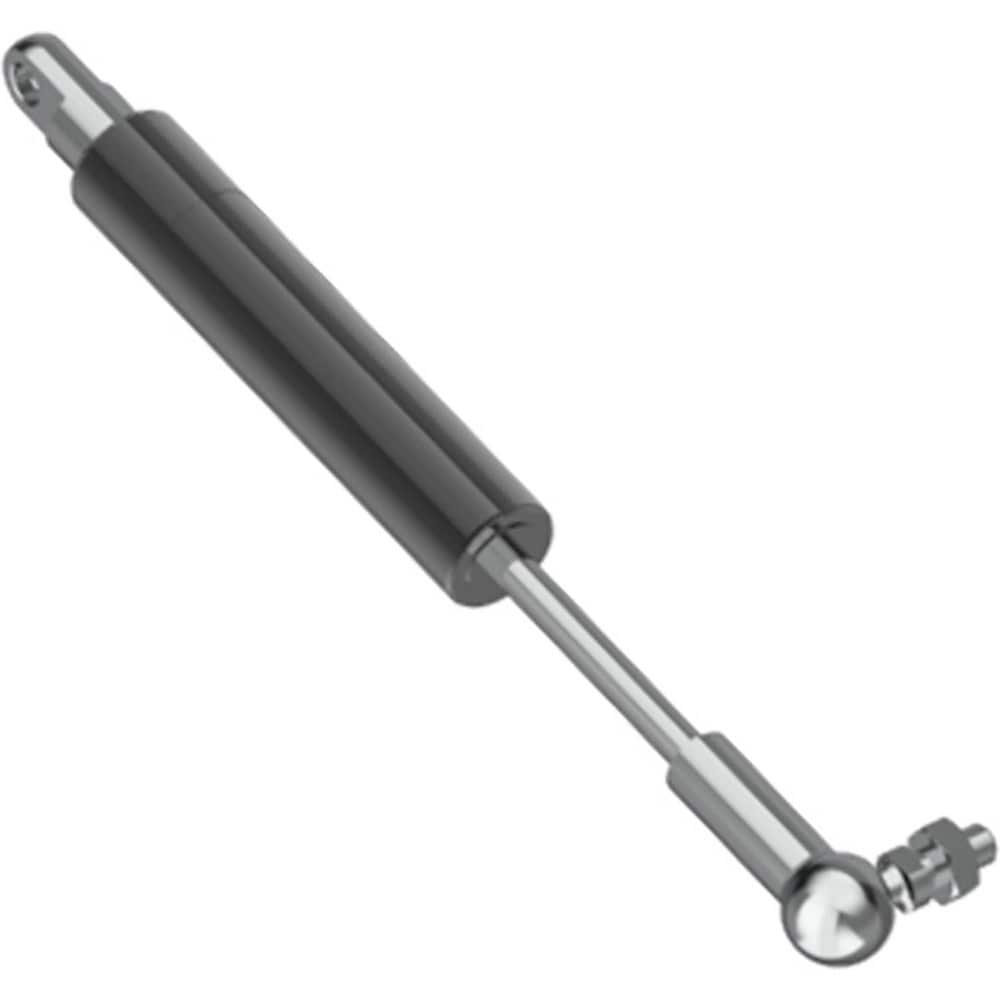

Micro Extended Life Gas Spring: 0.1600" Rod Dia, 0.4700" Tube Dia, 27.00 lb Capacity
Item #: 02393767
Brand: Industrial Gas Springs
Model #: 43S100232MP0022
Product Specifications
| Fitting Type | Blade |
| Type | Micro Extended Life Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (Decimal Inch) | 0.1600 |
| Tube Diameter (Decimal Inch) | 0.4700 |
| End Fitting Connection | Threaded End |
| Extended Length (Decimal Inch) | 7.0700 |
| Compressed Length (Decimal Inch) | 4.57 |
| Extension Force | 6 |
| Stroke Length (Decimal Inch) | 2.5000 |
| Thread Size (mm) | M4 x 0.7 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 27.00 |
| Special Item Information | Metal Eye Fitting |
| Finish Coating | Uncoated |
| Spring Rate | 0.4000 |
| UNSPSC Code | 31162800 |
