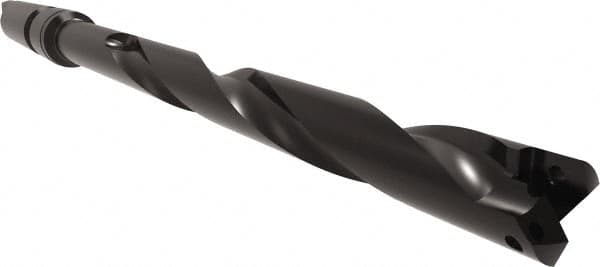

Allied Machine and Engineering - Series 1, 18mm Max Diam, 3MT Taper Shank, Helical Flute Spade Drill - 6-1/2" Max Depth, 9-11/32" Body Length, 13-7/32" OAL, Extended Length, Through Coolant
Item #: 91025999
Brand: Allied Machine and Engineering
Model #: 25010H-003IS045
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Shank Type | Taper Shank |
| Shank Taper Size | 3MT |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 13-7/32 |
| Overall Length (mm) | 335.76 |
| Overall Length (Decimal Inch) | 13.2188 |
| Maximum Drill Depth (mm) | 165.10 |
| Maximum Drill Depth (Inch) | 6-1/2 |
| Maximum Drill Depth (Decimal Inch) | 6.5000 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 237.33 |
| Flute Length (Inch) | 9-11/32 |
| Flute Length (Decimal Inch) | 9.3438 |
| Body Length (Inch) | 9-11/32 |
| Body Length (Decimal Inch) | 9.3438 |
| Body Length (mm) | 237.33 |
| Through Coolant | Yes |
